PRO-11 Ultralight symmetric super 700C full disc wheels

● Ultralight 950+/-50g disc wheelset

● Symmetric design
● Ratchet 36T system
● Clincher tubeless ready
● Inner 21mm, outer width 27mm

  • Item NO.:

    PRO-11
  • Payment:

    Paypal, Bank Transfer
  • Product Origin:

    China
  • Color:

    UD Free Paint (Customized Decal Acceptable)
  • Brake:

    Disc brake
  • Product Detail

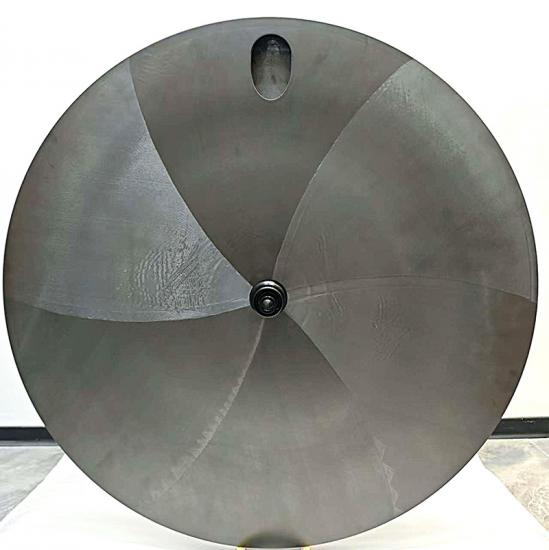

Rear full carbon disc wheelsWe do the new carbon layup design based on the Pro-10 full disc wheelset, use the T800+T1000 carbon material to achive light weight, and also make a new appearance. The symmetrical design of a full disc wheel with a hollow design that greatly reduces weight and improves wheel durability. Achieve better aerodynamics in your ride.

Inner width of 21mm, outer width of 27mm, optimized aerodynamics for 700x25C~35C tires. Tubeless compatible, optimized for wide tires, reduces tire pressure, reduces rolling resistance, increases grip and compliance.

PRO-11 full carbon disc wheels with ORNAN RD16 Ratchet system hubs optimized for maximum aerodynamics, power transfer, stiffness, lightweight and durability.





Rear full carbon road disc wheelset

FEATURES:


- Symmetric design

- UD free painting appearance

- Aero, durable, light weight

- Ultralight weight Toray T800+T1000

- Compatible for 700*25C-35C tire (tubeless ready)


- Hub: ORNAN RD16

- Freehub system: 36T Ratchet system

- Cassette body: Shimano 11s/12s or Sram XDR optional

- Axle system: Rear 12x142mm

- Brake system: Disc brake optional

- Tire Pressure: 125psi/8.6bar

- Category: Full disc carbon wheelset

- 2 years' quality warranty




SPECIFICATIONS


Model Materail Inner/Outer Width Category Max Weight Limit  Brake system Tire Type Terrian Front/Rear Hub Rear Size
Weight(+/-50g)
PRO-11-D T800+T1000
21mm/27mm Full disc rear wheels 90kg Disc brake

Clincher

Tubeless ready

Tri/Road Rear ORNAN RD16 12x142mm 950g


tt carbon disc wheelset
