Custom Weave 23.5/27.5/32mm Internal Wider 700C Carbon Rims

Product Overview

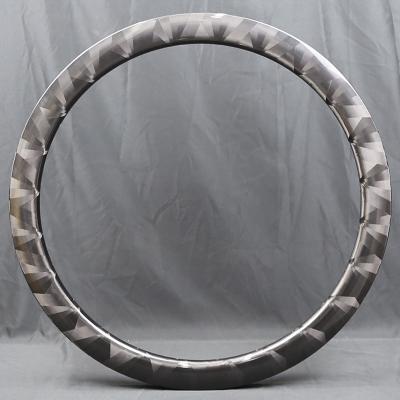

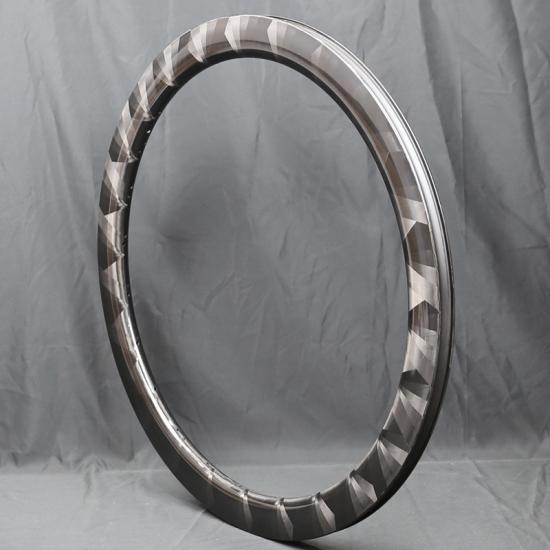

The Custom Weave series delivers 700C carbon rims OEM solutions with 23.5 mm / 27.5 mm / 32 mm internal width for road, CX and gravel riding, combining proven wide profile rim engineering with fully customisable surface carbon twill weave design.

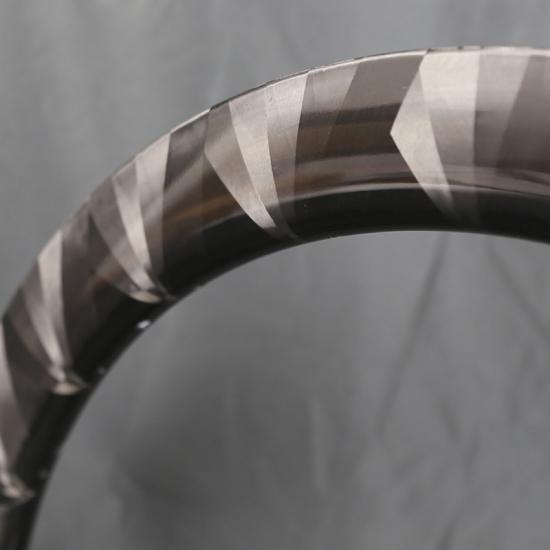

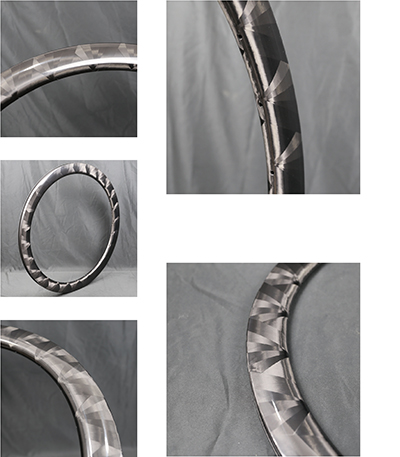

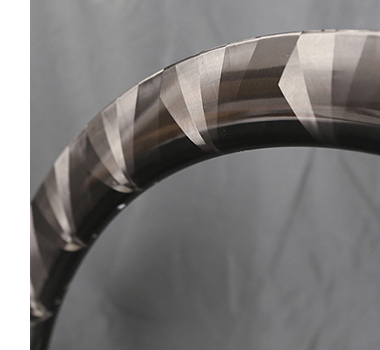

Surface weave defines your rim’s visual personality. Beyond generic carbon textures, our workshop realises distinctive premium surface treatments, such as butterfly carbon weave and artistic marble style flowing grain textures, delivering standout aesthetics for your product line.

We do not limit you to preset texture samples. If you have original conceptual designs, hybrid layer combinations or brand exclusive graphic weave requirements, our engineering team can evaluate and develop brand specific custom weave patterns according to your artwork and reference samples.

Visual customisation no longer requires trade offs in ride quality. All custom weave textures apply only to the rim’s outer cosmetic layer, while the internal structural carbon layup stays unchanged, preserving original strength, stiffness and weight performance. Brands gain unique visual differentiation without altering rim ride characteristics.

Wide Internal Width Platform Performance

Wider internal rim width optimises tyre profile, delivering more stable casing support, enlarged tyre ground contact patch, improved cornering confidence and enhanced ride comfort. Riders can safely run lower tubeless tyre pressures without high risk of pinch‑flat damage, boosting grip over rough roads, gravel and CX terrain.

Optimised for modern road endurance riding. Perfectly pairs with 28C‑65C wide road tyres, covering rim depth range 30 mm up to deep‑section 85 mm for aerodynamic road setups. Disc brake clincher tubeless‑ready design.

• 27.5mm Internal Width 700C Carbon Gravel Rims

Purpose built for cyclocross and gravel exploration. Stabilises 30C‑70C high volume gravel tyres, minimising sidewall squirm under cornering on loose surfaces. Multiple rim depth options from 30 mm‑65 mm for varied gravel use cases.

• 32mm internal carbon rims (Standard & Undulating Wave Profile)

B: Undulating wave shaped 32 mm rim: distinctive sculpted side‑wall geometry, fixed 24‑hole drilling for front/rear.

Rim hole specification reminder: The undulating wave profile 32 mm internal rim comes with fixed 24H drill. All other rim models accept custom hole count drilling options.
All rims within this series are disc‑brake only, clincher tubeless‑ready, built from blended T700 & T800 carbon fibre.

Customisable Item List

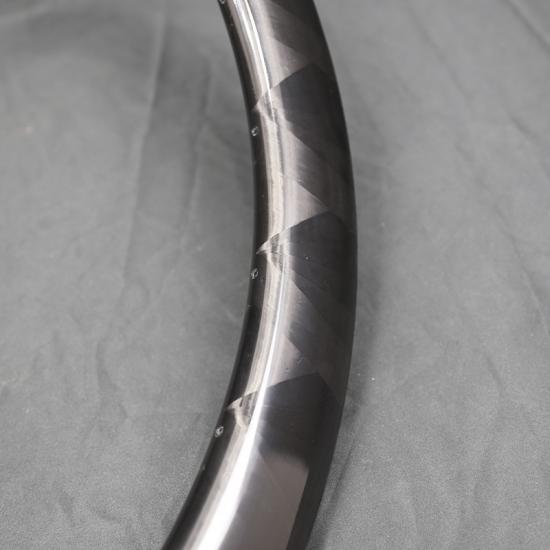

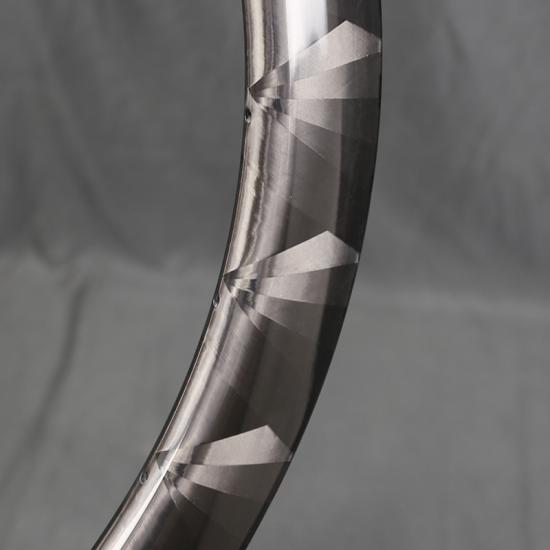

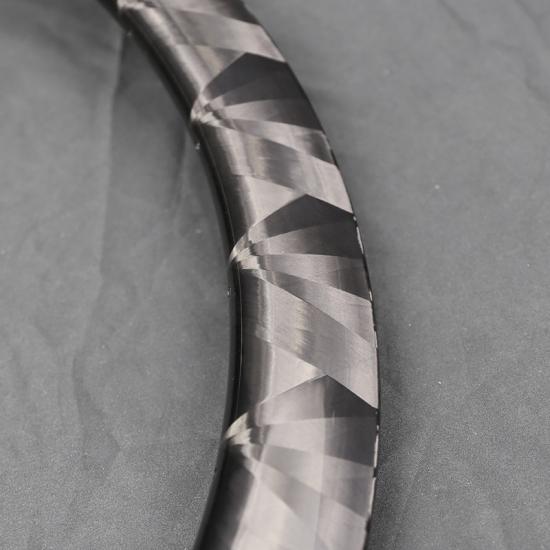

• Carbon Weave Texture: Butterfly carbon weave, marble grain and bespoke brand owned custom weave solutions
• Custom carbon finish: Gloss / Matte / Paint free clear finish; custom paint colours, decals and brand logo printing
• Spoke hole drilling: Custom hole counts for all models except undulating 32 mm wave rim (fixed 24 H)
• Rim depth selection across each internal width platform
• Small batch trial run support before mass production

FEATURES

• Custom carbon weave pattern for private label branding
• Accept custom developed weave patterns for exclusive brand specific designs
• Premium special fabric options including butterfly carbon weave, marble style texture and more
• Weave pattern applied only at surface cosmetic layer; no negative impact on rim strength or weight
• Small batch trial runs available prior to full scale production
• Glossy, matte or paint free finish options to highlight carbon weave details
• 2‑years quality warranty
• Disc brake only, tubeless ready clincher construction
• Multiple internal width choices: 23.5 mm / 27.5 mm / 32 mm (standard & undulating wave profile)

Note: Butterfly carbon weave finish is limited to Flyweight rim version only.

23.5mm IW SPECIFICATIONS

Model	ORN-C2330	ORN-C2335	ORN-C2340	ORN-C2345	ORN-C2350	ORN-C2355	ORN-C2360	ORN-C2365	ORN-C2385
Sectional Drawing
Material	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800
Use	Road	Road	Road	Road	Road	Road	Road	Road	Road
Type	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready	Ready	Ready	Ready	Ready	Ready
Internal/External Width	23.5mm/31.7mm	23.5mm/32.7mm	23.5mm/33mm	23.5mm/33mm	23.5mm/33.5mm	23.5mm/33.7mm	23.5mm/34mm	23.5mm/34.8mm	23.5mm/34.6mm
Depth	30mm	35mm	40mm	45mm	50mm	55mm	60mm	65mm	85mm
ERD(Include Nipple)	584mm	574mm	564mm	554mm	544mm	534mm	524mm	514mm	474mm
Flyweight	380+/-15g	400+/-15g	410+/-15g	420+/-15g	430+/-15g	440+/-15g	450+/-15g	490+/-15g	650+/-15g
Weight Limit	95kg	95kg	95kg	95kg	95kg	95kg	95kg	95kg	95kg
Spoke tension	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure (with 28C)	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar
Tire Recommended	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C

REMARKS: If you need Standard weight/Ultralight version, kindly please contact us for more info.

27.5mm IW SPECIFICATIONS

Model	ORN-C2730	ORN-C2735	ORN-C2740	ORN-C2745	ORN-C2750	ORN-C2755	ORN-C2760	ORN-C2765
Sectional Drawing
Material	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800
Use	CX/Gravelv	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel
Type	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready	Ready	Ready	Ready	Ready
Internal/External Width	27.5mm/35.5mm	27.5mm/36.5mm	27.5mm/36.8mm	27.5mm/36.8mm	27.5mm/36.8mm	27.5mm/36.8mm	27.5mm/36.8mm	27.5mm/36.8mm
Depth	30mm	35mm	40mm	45mm	50mm	55mm	60mm	65mm
ERD(Include Nipple)	584mm	574mm	564mm	554mm	544mm	534mm	524mm	514mm
Flyweight	395+/-15g	415+/-15g	425+/-15g	435+/-15g	445+/-15g	460+/-15g	505+/-15g	515+/-15g
Weight Limit	95kg	95kg	95kg	95kg	95kg	95kg	95kg	95kg
Spoke tension	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure (with 30C)	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar
Tire Recommended	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C

Model	ORN-C3230	ORN-C3235	ORN-C3240	ORN-C3245	ORN-C3250	ORN-C3255	ORN-C3260
Sectional Drawing
Material	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800
Use	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel
Type	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready	Ready	Ready	Ready
Internal/External Width	32mm/40mm	32mm/40.5mm	32mm/40.5mm	32mm/41.5mm	32mm/41.5mm	32mm/41.5mm	32mm/41.5mm
Depth	30mm	35mm	40mm	45mm	50mm	55mm	60mm
ERD(Include Nipple)	584mm	574mm	564mm	554mm	544mm	534mm	524mm
Flyweight	390+/-15g	405+/-15g	420+/-15g	435+/-15g	455+/-15g	470+/-15g	485+/-15g
Weight Limit	95kg	95kg	95kg	95kg	95kg	95kg	95kg
Spoke tension	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure (with 40C)	50psi/ 3.45bar	50psi/ 3.45bar	50psi/ 3.45bar	50psi/ 3.45bar	50psi/ 3.45bar	50psi/ 3.45bar	50psi/ 3.45bar
Tire Recommended	40C ~ 70C	40C ~ 70C	40C ~ 70C	40C ~ 70C	40C ~ 70C	40C ~ 70C	40C ~ 70C

REMARKS: If you need Standard weight/Ultralight version, kindly please contact us for more info.

Undulating 32mm IW SPECIFICATIONS

Model	ORN-CU3235	ORN-CU3240	ORN-CU3245	ORN-CU3250	ORN-CU3255
Sectional Drawing
Material	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800
Use	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel
Type	Clincher	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready	Ready
Internal/External Width	32mm/40mm	32mm/40.5mm	32mm/40.5mm	32mm/41.5mm	32mm/41.5mm
Depth	30mm/35mm	35mm/40mm	40mm/45mm	45mm/50mm	50mm/55mm
ERD(Include Nippe)	574mm	564mm	554mm	544mm	534mm
Flyweight	415+/-15g	425+/-15g	435+/-15g	445+/-15g	460+/-15g
Weight Limit	95kg	95kg	95kg	95kg	95kg
Spoke tension	130kgf	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure (with 40C)	50psi/ 3.45bar	50psi/ 3.45bar	50psi/ 3.45bar	50psi/ 3.45bar	50psi/ 3.45bar
Tire Recommended	40C ~ 70C	40C ~ 70C	40C ~ 70C	40C ~ 70C	40C ~ 70C
