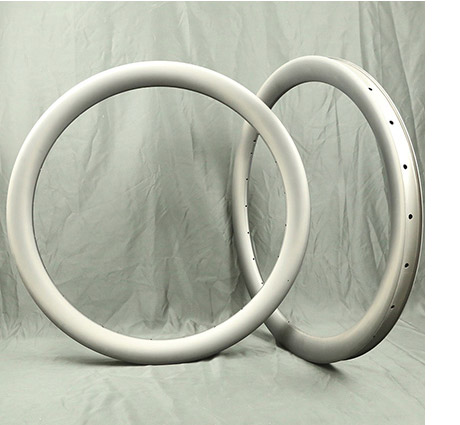

Custom Weave 23.5/27.5/32mm Inner Wider 700C Carbon Rims

Custom weave carbon rims give brands a way to stand out beyond spec sheets. While internal width and depth affect ride performance, the surface weave is what we see and touch first — and it's one of the few areas where a rim can carry a brand's own visual signature instead of looking like every other rim on the market.

Most people assume a distinctive look means compromising on engineering, but that's not the case here. The weave sits at the surface, separate from the structural layup that determines strength and stiffness — so a brand can own its look without changing how the rim rides or performs. It's customization that costs nothing in performance, which is exactly why it belongs in a rim's spec, not just its paint job.

FEATURES:

- Custom carbon weave pattern for private label branding

- Accept your custom weave patterns for exclusive brand specific designs.

- Weave pattern applied at surface layer only, no impact on strength or weight

- Small batch trial runs available before full production commitment

- U shape design aerodynamic advantage

- Double wall design, for better strength and stiffness

- 2 years’ quality warranty

23.5mm IW SPECIFICATIONS

Model	ORN-C2730	ORN-C2335	ORN-C2340	ORN-C2345	ORN-C2350	ORN-C2355	ORN-C2360	ORN-C2365	ORN-C2385
Sectional Drawing
Material	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800
Use	Road	Road	Road	Road	Road	Road	Road	Road	Road
Type	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready	Ready	Ready	Ready	Ready	Ready
Internal/External Width	23.5mm/31.7mm	23.5mm/32.7mm	23.5mm/33mm	23.5mm/33mm	23.5mm/33.5mm	23.5mm/33.7mm	23.5mm/34mm	23.5mm/34.8mm	23.5mm/34.6mm
Depth	30mm	35mm	40mm	45mm	50mm	55mm	60mm	65mm	85mm
ERD(Include Nipple)	584mm	574mm	564mm	554mm	544mm	534mm	524mm	514mm	474mm
Flyweight	380+/-15g	400+/-15g	410+/-15g	420+/-15g	430+/-15g	440+/-15g	450+/-15g	490+/-15g	650+/-15g
Weight Limit	95kg	95kg	95kg	95kg	95kg	95kg	95kg	95kg	95kg
Spoke tension	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure (with 28C)	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar	100psi/ 6.9bar
Tire Recommended	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C	28C ~ 65C

REMARKS: If you need Standard weight/Ultralight version, kindly please contact us for more info.

27.5mm IW SPECIFICATIONS

Model	ORN-C2730	ORN-C2735	ORN-C2740	ORN-C2745	ORN-C2750	ORN-C2755	ORN-C2760	ORN-C2765
Sectional Drawing
Material	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800
Use	CX/Gravelv	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel
Type	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready	Ready	Ready	Ready	Ready
Internal/External Width	27.5mm/35.5mm	27.5mm/36.5mm	27.5mm/36.8mm	27.5mm/36.8mm	27.5mm/36.8mm	27.5mm/36.8mm	27.5mm/36.8mm	27.5mm/36.8mm
Depth	30mm	35mm	40mm	45mm	50mm	55mm	60mm	65mm
ERD(Include Nipple)	584mm	574mm	564mm	554mm	544mm	534mm	524mm	514mm
Flyweight	395+/-15g	415+/-15g	425+/-15g	435+/-15g	445+/-15g	460+/-15g	505+/-15g	515+/-15g
Weight Limit	95kg	95kg	95kg	95kg	95kg	95kg	95kg	95kg
Spoke tension	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure (with 30C)	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar
Tire Recommended	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C

Model	ORN-C3230	ORN-C3235	ORN-C3240	ORN-C3245	ORN-C3250	ORN-C3255	ORN-C3260
Sectional Drawing
Material	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800
Use	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel
Type	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready	Ready	Ready	Ready
Internal/External Width	32mm/40mm	32mm/40.5mm	32mm/40.5mm	32mm/41.5mm	32mm/41.5mm	32mm/41.5mm	32mm/41.5mm
Depth	30mm	35mm	40mm	45mm	50mm	55mm	60mm
ERD(Include Nipple)	584mm	574mm	564mm	554mm	544mm	534mm	524mm
Flyweight	390+/-15g	405+/-15g	420+/-15g	435+/-15g	455+/-15g	470+/-15g	485+/-15g
Weight Limit	95kg	95kg	95kg	95kg	95kg	95kg	95kg
Spoke tension	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure (with 30C)	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar
Tire Recommended	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C

REMARKS: If you need Standard weight/Ultralight version, kindly please contact us for more info.

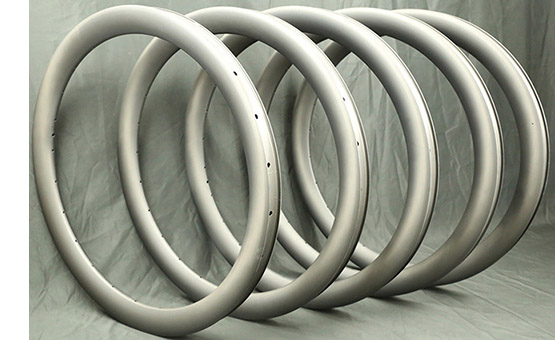

Undulating 32mm IW SPECIFICATIONS

Model	ORN-CU3235	ORN-CU3240	ORN-CU3245	ORN-CU3250	ORN-CU3255
Sectional Drawing
Material	T700 & T800	T700 & T800	T700 & T800	T700 & T800	T700 & T800
Use	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel
Type	Clincher	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready	Ready
Internal/External Width	32mm/40mm	32mm/40.5mm	32mm/40.5mm	32mm/41.5mm	32mm/41.5mm
Depth	30mm/35mm	35mm/40mm	40mm/45mm	45mm/50mm	50mm/55mm
ERD(Include Nippe)	574mm	564mm	554mm	544mm	534mm
Flyweight	415+/-15g	425+/-15g	435+/-15g	445+/-15g	460+/-15g
Weight Limit	95kg	95kg	95kg	95kg	95kg
Spoke tension	130kgf	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure (with 30C)	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar
Tire Recommended	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C	30C ~ 70C
