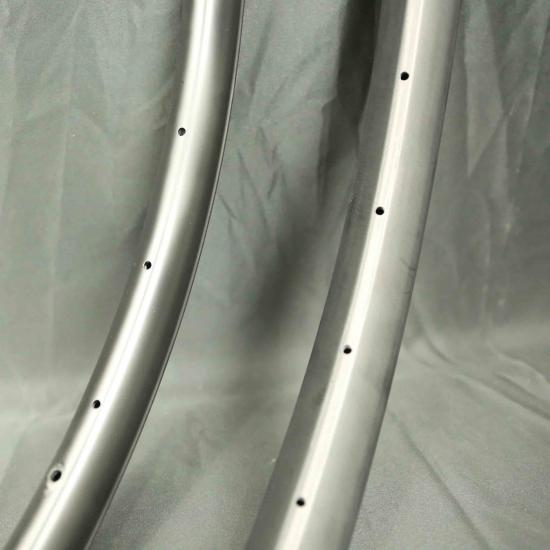

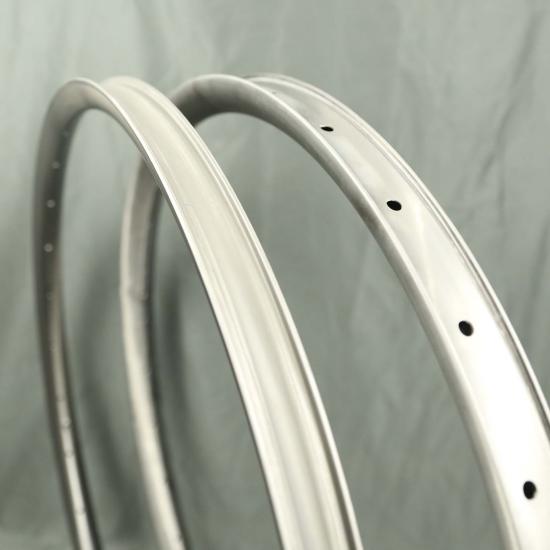

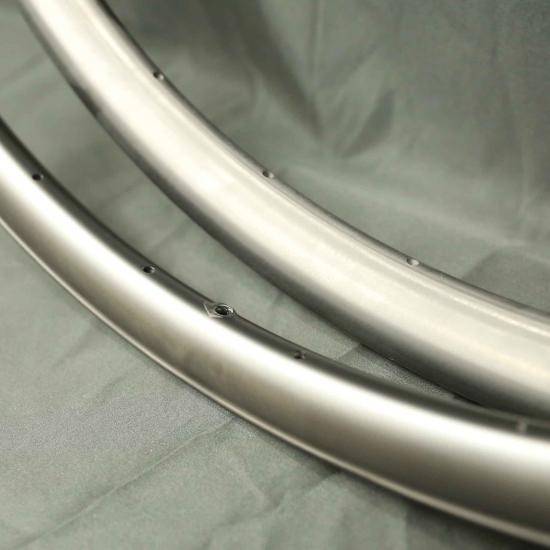

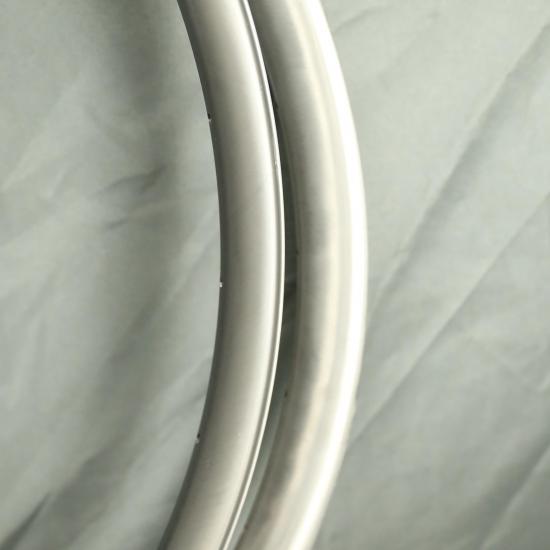

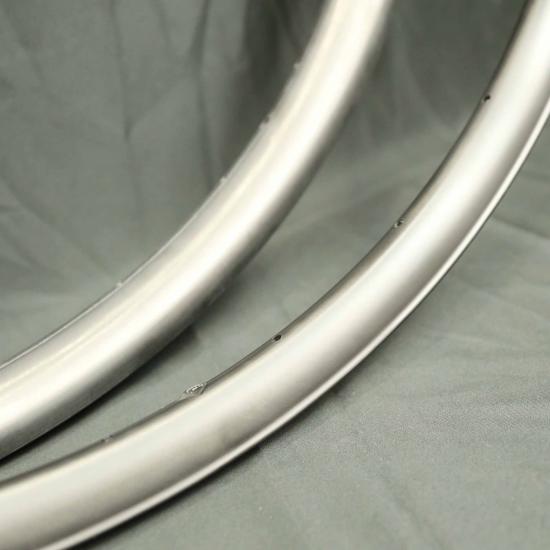

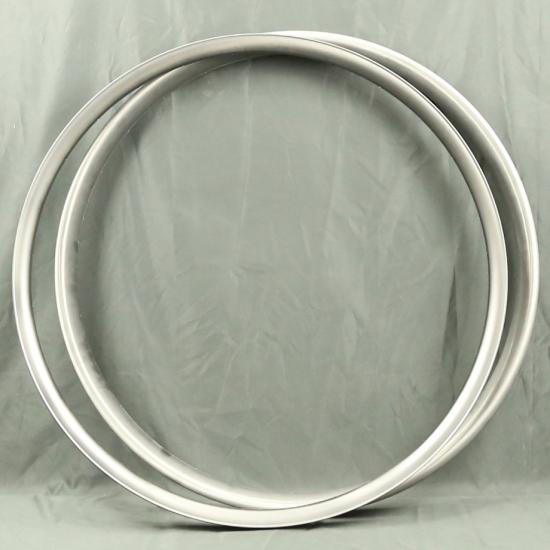

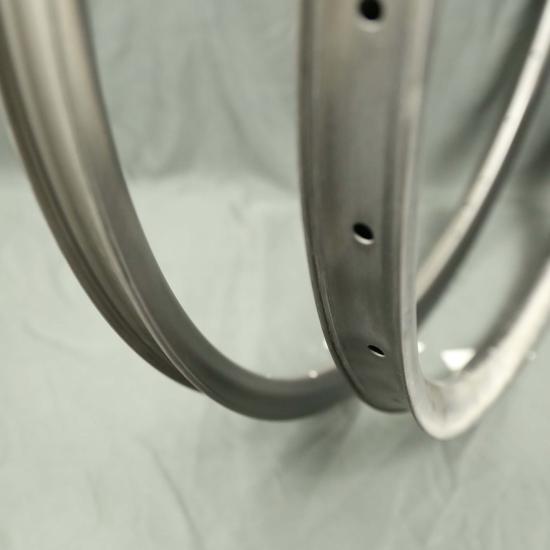

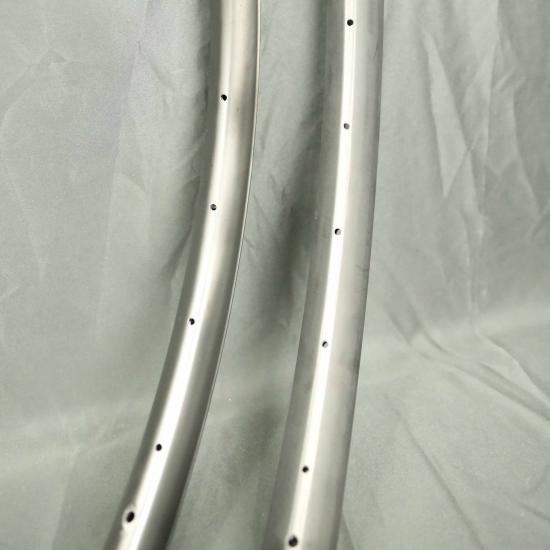

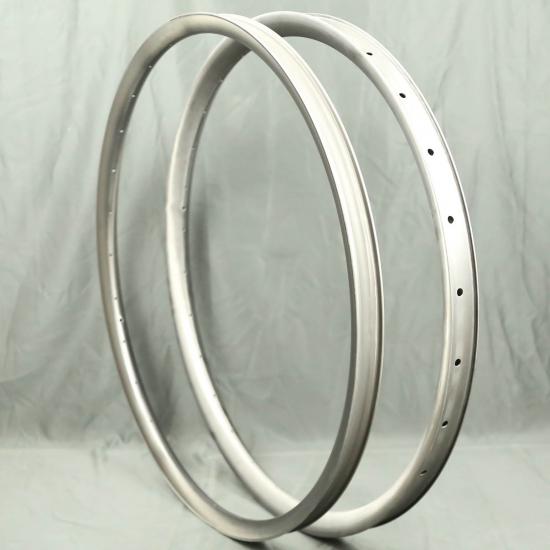

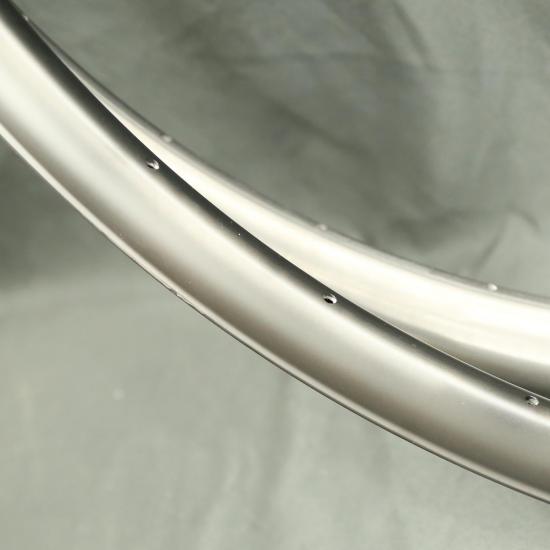

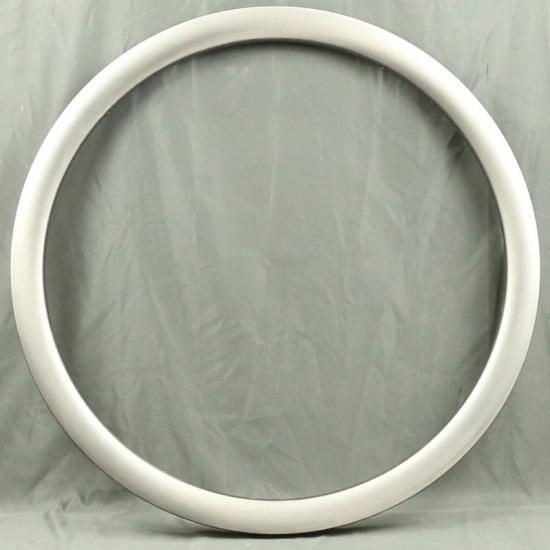

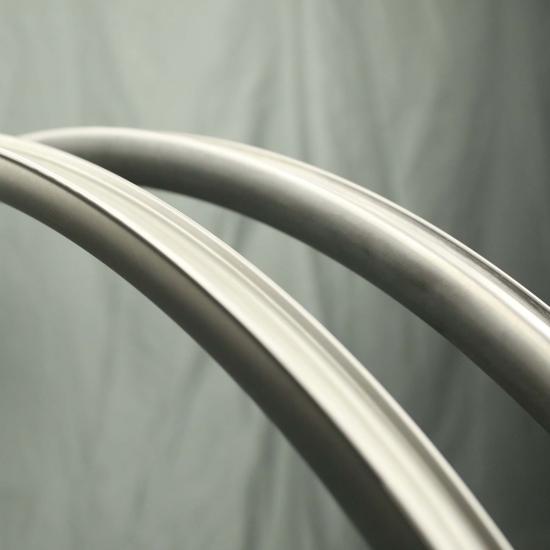

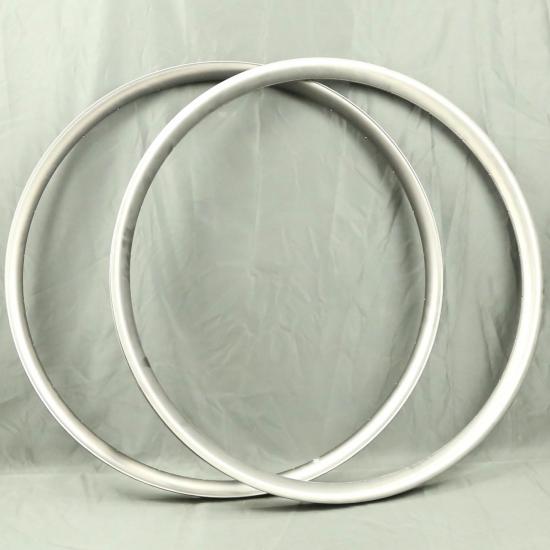

32er XC MTB Carbon Rims 32 inch Moutain Bike AM rims

After the mountain bike world has gone through the evolution from 26-inch to 29-inch wheels, each increase in wheel diameter has brought a leap in passability, efficiency, and stability.

32 inches is by far the largest mountain bike wheel diameter, 64 millimeters larger than the BSD (Bead Seat Diameter) of 29 inches, which directly brings several performance improvements. In terms of rolling efficiency and stability, a larger wheel diameter means a smaller angle of attack, enabling smoother rolling over obstacles such as tree roots and rocks. At the same time, the larger longitudinal contact area makes it easier for the wheels to maintain their trajectory, improving high-speed stability.

The UCI has officially opened up the use of 32-inch wheels for cross-country races, paving the way for their application in professional competitions.
For now, 32-inch wheels are actually a highly specialized and niche choice. Theoretically, they are designed for riders who are tall or pursue extreme rolling efficiency in long-distance flat races such as XC marathons. Meanwhile, 32-inch wheel size represents the cutting edge of mountain bike performance exploration, a gift for riders who are not satisfied with the status quo and dare to push boundaries.

FEATURES:

- Hybrid construction of Toray T800&T1000

- Extremely high scrolling efficiency

- Excellent passability and stability

- More traction in rough corners

- Smoother ride in rocky terrain

- Ability to run lower tire pressure

- Reduced rider fatigue

- Symmetric rim profile design

- Compatible for 2.0"-2.75" tire (tubeless ready)

- Hook and hookless options

- 2 years’ quality warranty

SPECIFICATIONS

Model	M30-25C-AM	M35-30CH-AM	M35-30C-AM	M30-25C-XC	MU30-25C-XC	M35-30CH-XC	M35-30C-XC
Sectional Drawing
Material	T700 & T800	T700 & T800	T700 & T800	T800 & T1000	T1100	T800 & T1000	T800 & T1000
Offset	3mm	NO	NO	3mm	3mm	NO	NO
Use	AM	AM	AM	XC	XC	XC	XC
Type	Hookless	Hooked	Hookless	Hookless	Hookless	Hooked	Hookless
Tubeless	Ready	Ready	Ready	Ready	Ready	Ready	Ready
Internal/External Width	30mm/37mm	35mm/41.5mm	35mm/41.5mm	30mm/37mm	30mm/37mm	35mm/41.5mm	35mm/41.5mm
Depth	25mm	30mm	30mm	25mm	25mm	30mm	30mm
ERD(Include Nipple)	658mm	648mm	648mm	658mm	658mm	648mm	648mm
Weight	440+/-15g	530+/-15g	530+/-15g	410+/-15g	370+/-15g	480+/-15g	480+/-15g
Weight Limit	120kg	120kg	120kg	95kg	95kg	95kg	95kg
Spoke Tension	≤130kgf	≤130kgf	≤130kgf	≤130kgf	≤130kgf	≤130kgf	≤130kgf
Max Tire Pressure	35psi/2.41bar	35psi/2.41bar	35psi/2.41bar	35psi/2.41bar	35psi/2.41bar	35psi/2.41bar	35psi/2.41bar
Tire Recommended	2.0" ~ 2.75”	2.0" ~ 2.75”	2.0" ~ 2.75”	2.0" ~ 2.75”	2.0" ~ 2.75”	2.0" ~ 2.75”	2.0" ~ 2.75”
