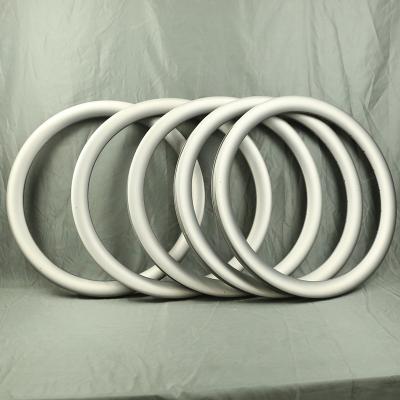

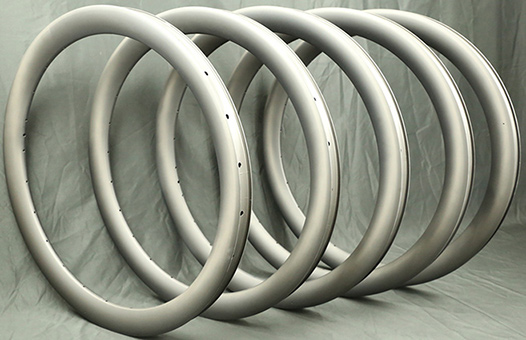

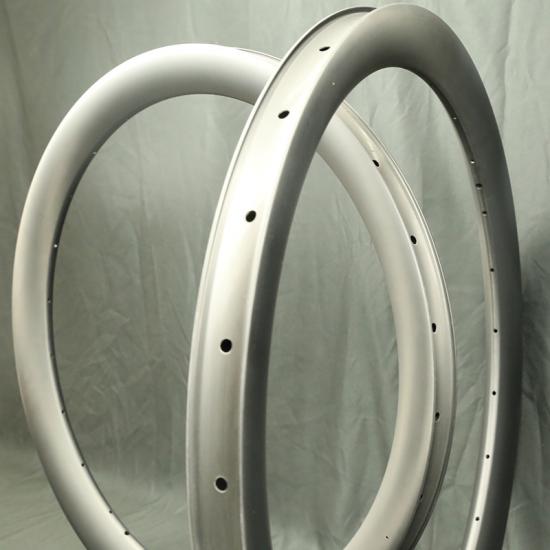

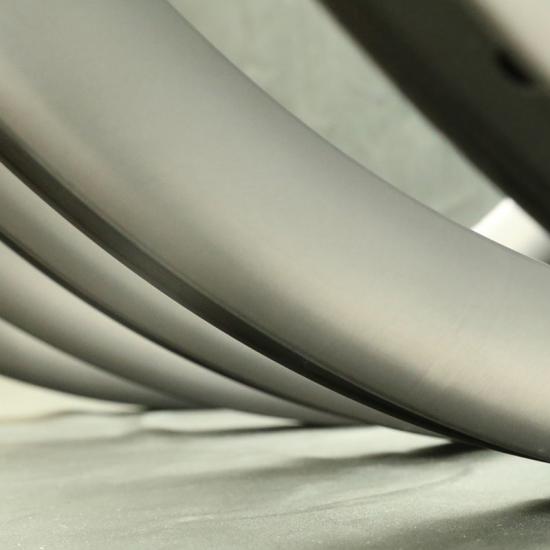

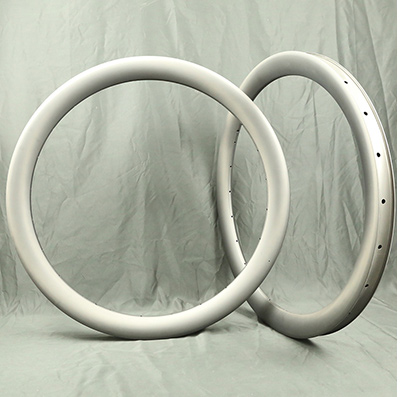

Ultralight ultimate 26/27/32/33 inner wider Best 700C Carbon Gravel Rims

The market trend is wider gravel rim, For gravel riders, long distance gravel cyclists, and bikepacking enthusiasts, also cyclo-cross racers, they need wider gravel tyre to make riding not only more comfortable but ensure keep high speed.

Wider tires means lower rolling resistance, high inflation capacity, significantly improved cornering grip, better cushioning, and greatly enhanced riding comfort.

We made rim molds of 26mm internal width, 27mm internal width, 32mm internal width and 33mm internal width rim to provide gravel riders more optionsoptimize the carbon gravel riding experience. Different riders can choose the suitable rim internal width to fit the tire size they need better for the seamless transition from the rim to the tire enhances Aerodynamic performance.

We use a double wall design to better control the rim strength and stiffness during layup. Rim profiles are specially designed with aero gains and drag reduction in mind.

Best carbon gravel 700C rims have hook and hookless version, provide to accommodate larger tires. more forgiving surface during bottom outs protecting the tire from the dreaded pinch-flat.

FEATURES:

- Durable long distance Gravel/cyclocross carbon wheelset, ready for adventure

- Provide hook and hookless versions

- Easy of tubeless inflation and best tire bead retention

- U shape design aerodynamic advantage

- Double wall design, for better strength and stiffness

- Compatible for 700*38C-70C tire (tubeless ready)

- 2 years’ quality warranty

26/27mm IW SPECIFICATIONS

Model	Orn735-40CH	Orn735-45CH	Orn735-50CH	Orn735-40C	Orn735-45C	Orn735-50C
Sectional Drawing
Material	T800 & T1000	T800 & T1000	T800 & T1000	T800 & T1000	T800 & T1000	T800 & T1000
Use	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel
Type	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready	Ready	Ready
Internal/External Width	26mm/35mm	26mm/35mm	26mm/35mm	27mm/35mm	27mm/35mm	27mm/35mm
Depth	40mm	45mm	50mm	40mm	45mm	50mm
ERD(Include Nipple)	565mm	555mm	545mm	565mm	555mm	545mm
Ultralight weight	375+/-15g	385+/-15g	400+/-15g	375+/-15g	385+/-15g	400+/-15g
Weight Limit	90kg	90kg	90kg	90kg	90kg	90kg
Spoke tension	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure(with 38C)	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar	80psi/ 5.52bar
Tire Recommended	38C ~ 70C	38C ~ 70C	38C ~ 70C	38C ~ 70C	38C ~ 70C	38C ~ 70C

REMARKS: If you need Standard weight/Flyweight version, kindly please contact us for more info.

32mm/33mm IW SPECIFICATIONS

Model	Orn741-40CH	Orn741-45CH	Orn741-50CH	Orn741-40C	Orn741-45C	Orn741-50C
Sectional Drawing
Material	T800 & T1000	T800 & T1000	T800 & T1000	T800 & T1000	T800 & T1000	T800 & T1000
Use	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel	CX/Gravel
Type	Clincher	Clincher	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready	Ready	Ready
Internal/External Width	32mm/41mm	32mm/41mm	32mm/41mm	33mm/41mm	33mm/41mm	33mm/41mm
Depth	40mm	45mm	50mm	40mm	45mm	50mm
ERD(Include Nipple)	565mm	555mm	545mm	565mm	555mm	545mm
Ultralight Weight	385+/-15g	395+/-15g	410+/-15g	385+/-15g	395+/-15g	410+/-15g
Weight Limit	90kg	90kg	90kg	90kg	90kg	90kg
Spoke tension	130kgf	130kgf	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure(with 45C)	60psi/4.14bar	60psi/4.14bar	60psi/4.14bar	60psi/4.14bar	60psi/4.14bar	60psi/4.14bar
Tire Recommended	42C~70C	42C~70C	42C~70C	42C~70C	42C~70C	42C~70C
