Ultralight Asymetrical 24/27/30mm inner width

/Ultralight Asymetrical Design 24/27/30mm inner width Best Carbon 700C Gravel Rims

gravel race asymetrical carbon rim
gravel race asymetrical carbon rim gravel race asymetrical carbon rim gravel race asymetrical carbon rim gravel race asymetrical carbon rim gravel race asymetrical carbon rim gravel race asymetrical carbon rim gravel race asymetrical carbon rim gravel race asymetrical carbon rim gravel race asymetrical carbon rim gravel race asymetrical carbon rim gravel race asymetrical carbon rim gravel race asymetrical carbon rim

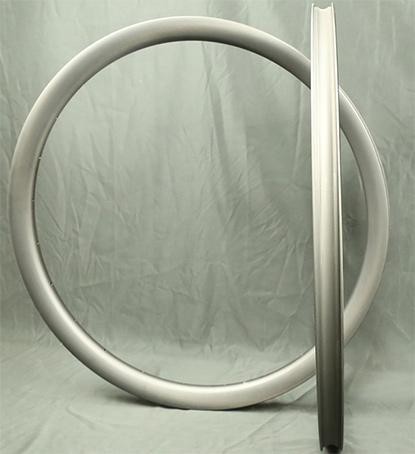

Ultralight Asymetrical Design 24/27/30mm inner width Best Carbon 700C Gravel Rims

● Ultralight Asymetrical design gravel carbon rims

● Asymmetric design 2.8mm
● Rim weave: UD matte/glossy
● Premium Toray T1000 carbon fiber

Related Articles

  • Payment:

    Paypal, Bank Transfer

  • Product Origin:

    China

  • Color:

    UD matte or glossy (Customized Decal Acceptable)

  • Brake:

    Disc Brake

  • Hole Count:

    F/R- 24 or 28H(Customized Drill Acceptable)
Inquiry now
  • Product Detail

asymetrical design gravel carbon rimThe wider gravel asymetrical series UD carbon 700C rims are made from Premium Toray T1000 carbon fiber,

Asymmetric design 2.8mm, helps to equalize the spoke tension between drive side and non-drive side.

The widened internal width of 24mm/27mm/30mm ensures that you can drive smoothly in all kinds of road conditions, climbing slopes and flat conditions.

Tubeless ready: compatible with both tubed and tubeless setups.

Excellent design makes the rider more capable, lighter and more wind-breaking.








undrill rim bed carbon rim  FEATURES:



  - Design for long distance Gravel/cyclocross carbon wheelset, ready for adventure


  - Provide hook and hookless versions


  - Easy of tubeless inflation and best tire bead retention


  - U shape design aerodynamic advantage


  - Double wall design, for better strength and stiffness


  - Compatible for 700*28C-70C tire (tubeless ready)


  - 2 years’ quality warranty




24mm IW SPECIFICATIONS


Model
 Orn730A-32CH
 Orn730A-35CH
 Orn730A-39CH
 Orn730A-45CH
 Orn730A-50CH
 Orn730A-55CH
 Orn730A-60CH
 Orn730A-32C
 Orn730A-35C Orn730A-39C Orn730A-45C Orn730A-50C
 Orn730A-55C Orn730A-60C

Sectional

Drawing

Orn730A-32CH
 Orn730A-35CH
 Orn730A-39CH
 Orn730A-45CH
 Orn730A-50CH
 Orn730A-55CH
 Orn730A-60CH
 Orn730A-32C
 Orn730A-35C
 Orn730A-39C
 Orn730A-45C
 Orn730A-50C
 Orn730A-55C
 Orn730A-60C
Material T1000  T1000 T1000 T1000 T1000 T1000 T1000 T1000 T1000
 T1000
 T1000
 T1000
 T1000
 T1000
Offset 2.8mm 2.8mm
 2.8mm
 2.8mm

2.8mm

2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
Use CX/Gravel CX/Gravel CX/Gravel CX/Gravel CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
Type
 Clincher
 Clincher
 Clincher
 Clincher Clincher
 Clincher
 Clincher
 Clincher
 Clincher
 Clincher
 Clincher
 Clincher
 Clincher
 Clincher
Tubeless
 Ready
 Ready
 Ready
 Ready Ready
 Ready
 Ready
 Ready
 Ready
 Ready
 Ready
 Ready
 Ready
 Ready
Internal/External Width
 24mm/30mm
 24mm/30mm
 24mm/30mm
 24mm/30mm 24mm/30mm
 24mm/30mm
 24mm/30mm
 24mm/30mm
 24mm/30mm
 24mm/30mm
 24mm/30mm
 24mm/30mm
 24mm/30mm
 24mm/30mm
Depth
 32mm 35mm 39mm 45mm 50mm
 55mm 60mm
 32mm 35mm 39mm 45mm 50mm
 55mm 60mm
ERD(Include Nipple)
 581mm 575mm 567mm 555mm 545mm
 535mm 525mm
 581mm 575mm 567mm 555mm 545mm
 535mm 525mm
Ultralight weight
 320+/-15g 325+/-15g 340+/-15g 350+/-15g 365+/-15g
 400+/-15g 415+/-15g
 320+/-15g 325+/-15g 340+/-15g 350+/-15g 365+/-15g
 400+/-15g 415+/-15g

Weight Limit

90kg

90kg

90kg

90kg 90kg
 90kg 90kg
 90kg 90kg 90kg 90kg 90kg
 90kg 90kg
Spoke tension 130kgf 130kgf 130kgf  130kgf 130kgf
  130kgf
 130kgf
  130kgf
 130kgf 130kgf 130kgf 130kgf
 130kgf 130kgf

Max Tire Pressure(with 28C)

80psi/ 5.52bar
 80psi/ 5.52bar
 80psi/ 5.52bar
 80psi/ 5.52bar 80psi/ 5.52bar
 80psi/ 5.52bar
 80psi/ 5.52bar
 80psi/ 5.52bar
 80psi/ 5.52bar
 80psi/ 5.52bar
 80psi/ 5.52bar
 80psi/ 5.52bar
 80psi/ 5.52bar
 80psi/ 5.52bar
Tire Recommended
 28C ~ 50C
 28C ~ 50C
 28C ~ 50C
 28C~50C 28C~50C
 28C~50C
 28C~50C
 28C~50C
 28C~50C
 28C~50C
 28C~50C
 28C~50C
 28C~50C
 28C~50C

REMARKS: If you need Standard weight/Flyweight/Lightest version, kindly please contact us for more info.


27mm IW SPECIFICATIONS

Model Orn733A-40CH Orn733A-45CH Orn733A-50CH Orn733A-40C Orn733A-45C Orn733A-50C
Sectional Drawing Orn733A-40CH Orn733A-45CH
 Orn733A-50CH
 Orn733A-40C
 Orn733A-45C
 Orn733A-50C
Material T1000 T1000 T1000
 T1000
 T1000 T1000
Offset 2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
Use CX/Gravel CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
Type Clincher Clincher
 Clincher
 Clincher
 Clincher
 Clincher
Tubeless Ready Ready
 Ready
 Ready
 Ready
 Ready
Internal/External Width 27mm/33mm 27mm/33mm
 27mm/33mm
 27mm/33mm
 27mm/33mm
 27mm/33mm
Depth 40mm 45mm 50mm 40mm 45mm 50mm
ERD(Include Nipple) 565mm 555mm 545mm 565mm 555mm 545mm
Ultralight Weight 335+/-15g 365+/-15g 375+/-15g 335+/-15g
 365+/-15g
 375+/-15g
Weight Limit 90kg
 90kg 90kg
 90kg
 90kg
 90kg
Spoke tension 130kgf
 130kgf
 130kgf
 130kgf
 130kgf
 130kgf
Max Tire Pressure(with 28C)  70psi / 4.83bar  70psi / 4.83bar
  70psi / 4.83bar
  70psi / 4.83bar
  70psi / 4.83bar
  70psi / 4.83bar
Tire Recommended 38C~70C 38C~70C
 38C~70C
 38C~70C
 38C~70C

38C~70C

REMARKS: If you need Standard weight/Flyweight version, kindly please contact us for more info.



30mm IW SPECIFICATIONS

Model Orn736A-35CH Orn736A-40CH Orn736A-45CH Orn736A-50CH Orn736A-35C Orn736A-40C Orn736A-45C
 Orn736A-50C
Sectional Drawing Orn736A-35CH
 Orn736A-40CH
 Orn736A-45CH
 Orn736A-50CH
 Orn736A-35C
 Orn736A-40C
 Orn736A-45C
 Orn736A-50C
Material T1000 T1000
 T1000
 T1000 T1000
 T1000
 T1000
 T1000
Offset 2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
 2.8mm
Use CX/Gravel CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
 CX/Gravel
Type Clincher Clincher
 Clincher
 Clincher
 Clincher
 Clincher
 Clincher
 Clincher
Tubeless Ready Ready
 Ready
 Ready
 Ready
 Ready
 Ready
 Ready
Internal/External Width 30mm/36mm 30mm/36mm
 30mm/36mm
 30mm/36mm
 30mm/36mm
 30mm/36mm
 30mm/36mm
 30mm/36mm
Depth 35mm 40mm 45mm 50mm 35mm 40mm 45mm 50mm
ERD(Include Nipple) 575mm 565mm 555mm 545mm 575mm 565mm 555mm 545mm
Ultralight Weight 340+/-15g 350+/-15g 370+/-15g 385+/-15g 340+/-15g 350+/-15g 370+/-15g
 385+/-15g
Weight Limit 90kg 90kg
 90kg
 90kg
 90kg
 90kg
 90kg
 90kg
Spoke tension 130kgf 130kgf
 130kgf
 130kgf
 130kgf
 130kgf
 130kgf
 130kgf
Max Tire Pressure(with 45C) 60psi/4.14bar 60psi/4.14bar
 60psi/4.14bar
 60psi/4.14bar 60psi/4.14bar 60psi/4.14bar 60psi/4.14bar
 60psi/4.14bar
Tire Recommended 40C~70C 40C~70C
 40C~70C
 40C~70C 40C~70C 40C~70C 40C~70C
 40C~70C
REMARKS: If you need Standard weight/Flyweight version, kindly please contact us for more info.
