Road Handlebars

/

HBR16 Road

/Ultralight Aero Road handlebars 295g EPS with one piece molding TECH

Ultralight aero handlebars
Ultralight aero handlebars Ultralight aero handlebars Ultralight aero handlebars Ultralight aero handlebars Ultralight aero handlebars Ultralight aero handlebars Ultralight aero handlebars Ultralight aero handlebars Ultralight aero handlebars Ultralight aero handlebars Ultralight aero handlebars Ultralight aero handlebars

Ultralight Aero Road handlebars 295g EPS with one piece molding TECH

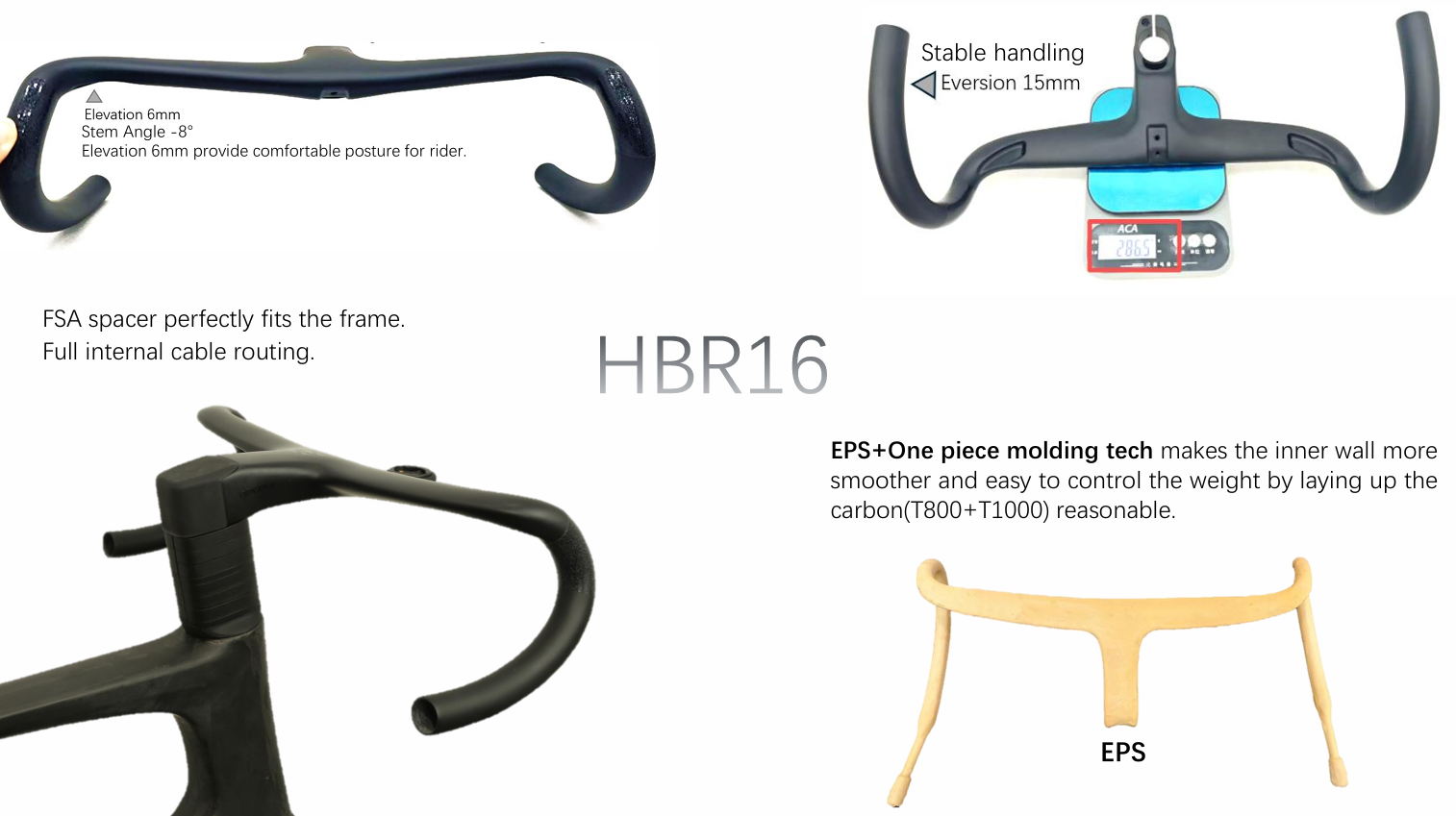

● EPS+ONE piece molding TECH

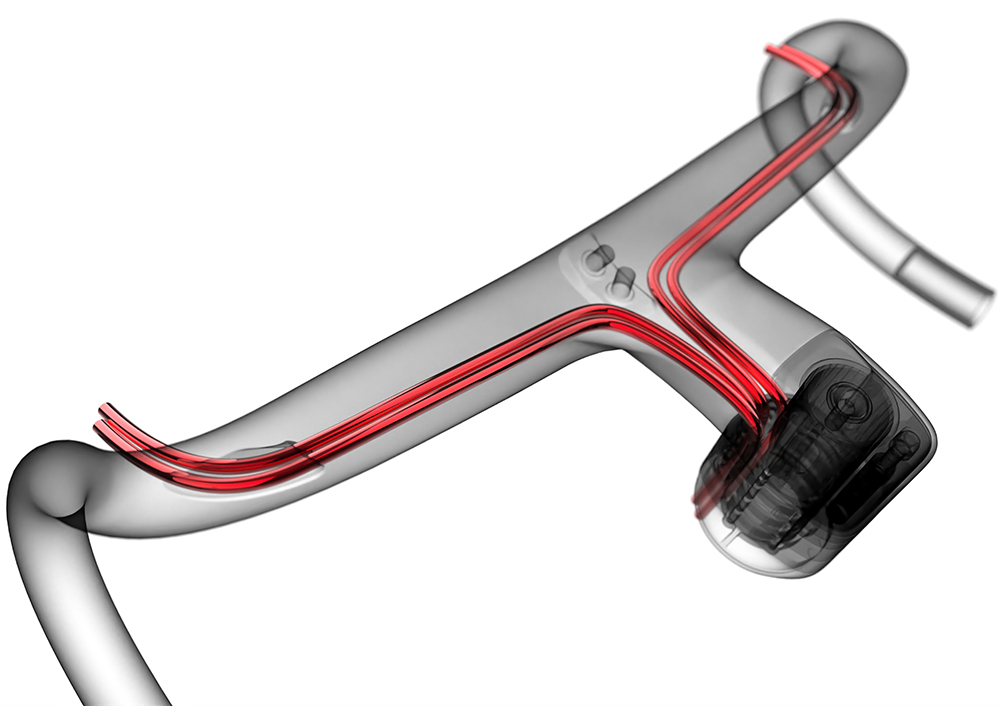

● Full internal cable routing

● Made of Toray T800+T1000 carbon fiber

● Aero handlebar integrated with stem design

  • Item NO.:

    HBR16

  • Payment:

    Paypal, Bank Transfer

  • Product Origin:

    China

  • Color:

    UD Matt (Customized Painting Acceptable)

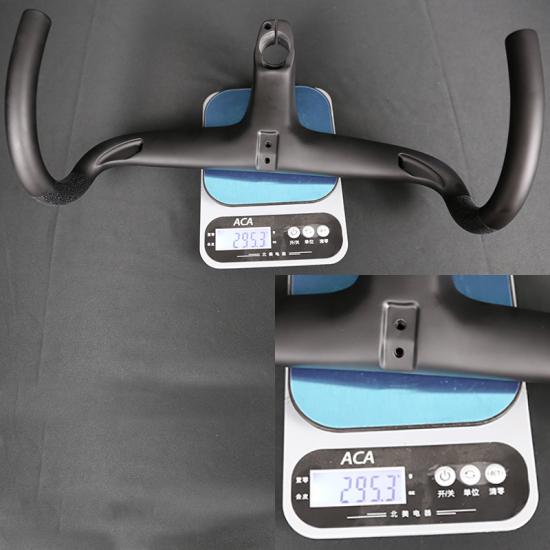

  • Product weight:

    295+/-10g
Inquiry now
  • Product Detail

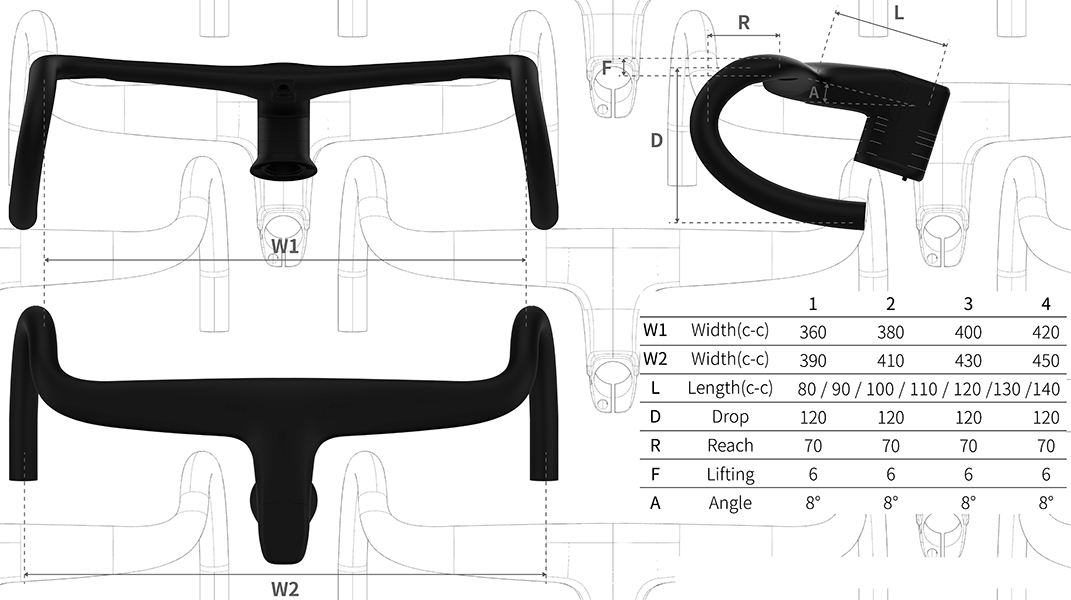

Model name HBR16
Size 360mm, 380mm, 400mm, 420mm (center to center)
Stem length
 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm
Stem angle -8 degree
Reach 70mm
Drop 120mm
Steerer tube diameter 28.6 and 31.8mm
Material  High modulus Toray T700+T1000 carbon fiber
Weight 295g+/-10g
Test Standard
 ISO4210
Warranty
 2 years

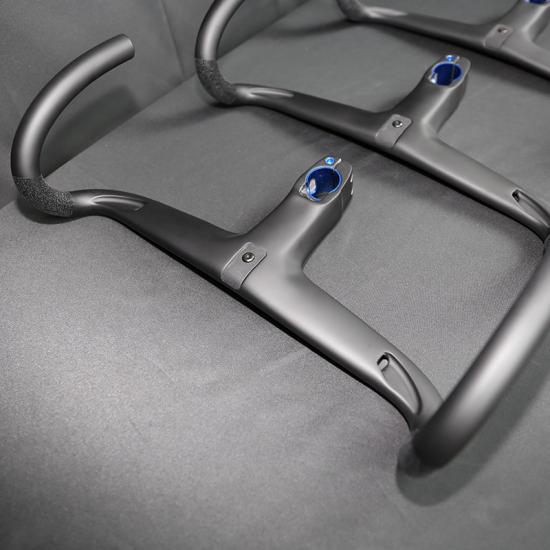

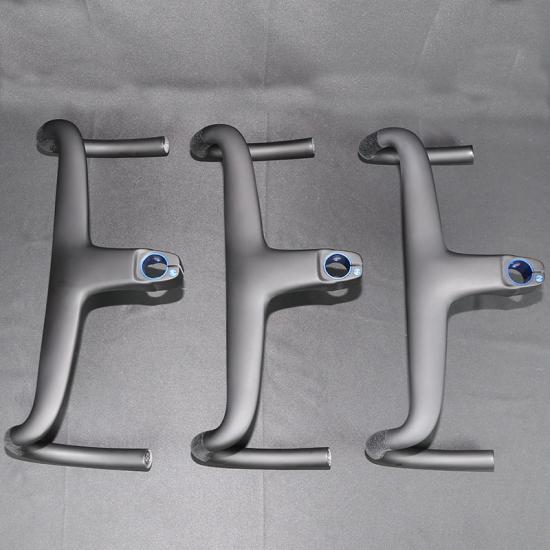

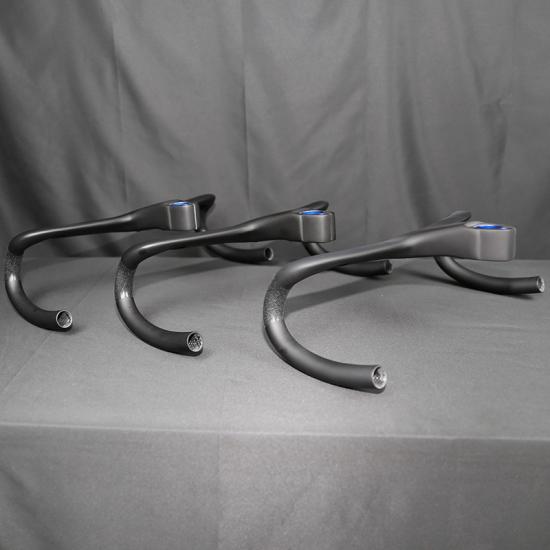

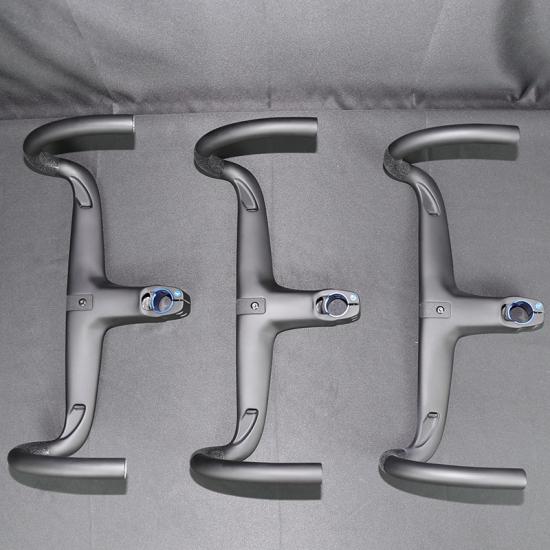

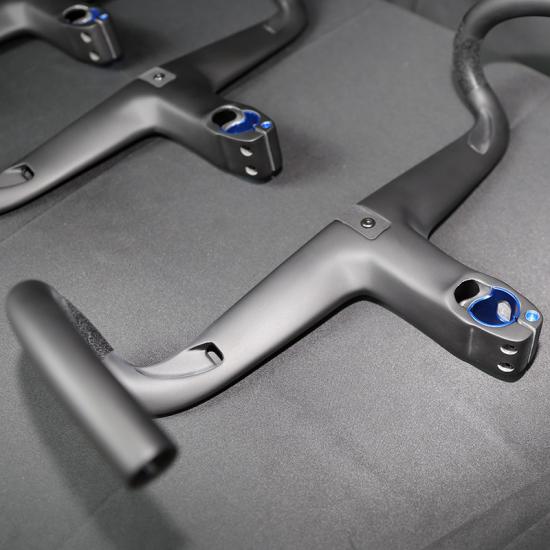

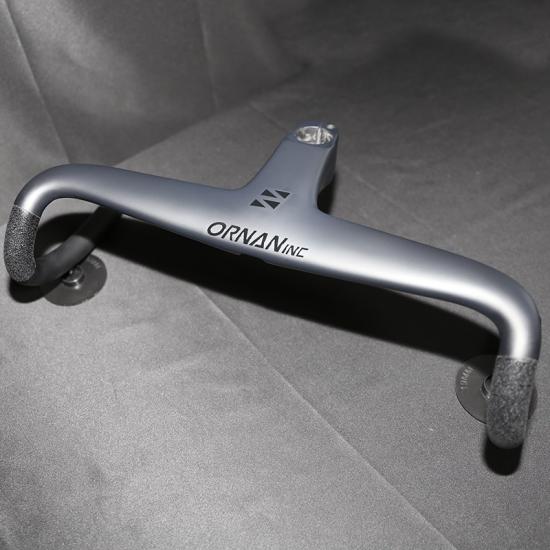

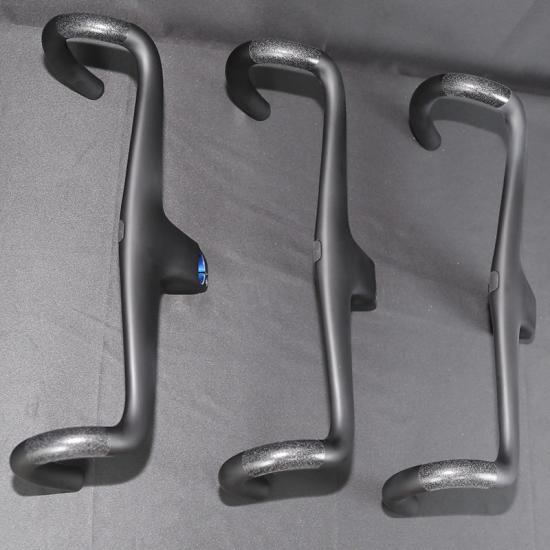

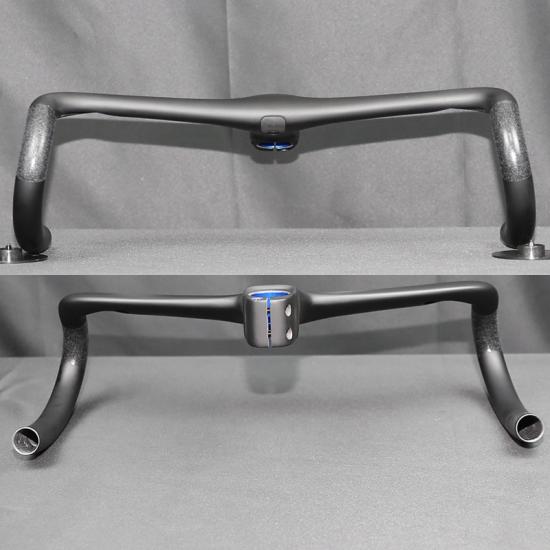

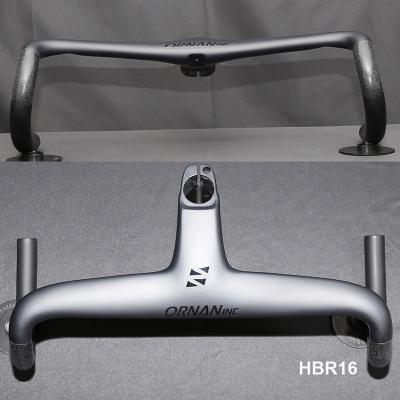

HBR16 CARBON ROAD HANDLEBARS PICTURE
