Ultralight 700C UD Carbon Spokes

/

23mm internal Carbon Spokes

/UltraLight 23mm inner 3.2mm width UD Carbon wheels Race Pro 700C Road

ORNANINC UltraLight 23mm UD Carbon 700C wheels
ORNANINC UltraLight 23mm UD Carbon 700C wheels ORNANINC UltraLight 23mm UD Carbon 700C wheels ORNANINC UltraLight 23mm UD Carbon 700C wheels ORNANINC UltraLight 23mm UD Carbon 700C wheels ORNANINC UltraLight 23mm UD Carbon 700C wheels ORNANINC UltraLight 23mm UD Carbon 700C wheels ORNANINC UltraLight 23mm UD Carbon 700C wheels ORNANINC UltraLight 23mm UD Carbon 700C wheels ORNANINC UltraLight 23mm UD Carbon 700C wheels

UltraLight 23mm inner 3.2mm width UD Carbon wheels Race Pro 700C Road

● Ratchet 36T or 54T system optional
● Rim weave: UD Free paint TECH
● 3.2mm width flat UD carbon fibre spoke
● 32mm width, 23mm internal width carbon road wheelset
● 35/38/40/45/50/55/58/60mm depth optional

  • Payment:

    Paypal, Bank Transfer

  • Product Origin:

    China

  • Color:

    UD free paint

  • Brake:

    Disc Brake

  • Hole Count:

    F/R 20H

  • Standard:

    EN Standard

  • Level:

    Top Racing
Inquiry now
  • Product Detail

DESCRIPTION


23mm internal width road carbon rim

The new ultra-light carbon spoke wheelset was designed with 3.2mm width UD flat carbon spokes, which made it more comprehensive.
Carbon spokes provide higher stiffness and better fatigue life, aero and light. UD carbon spokes are 30% stiffer than steel spokes.
Excellent design makes the rider more capable, lighter and more wind-breaking.

ORNANINC, an ultra-light carbon spoke wheelset, adopts the latest technology, which painting-free. The finished rim you see is the original appearance of carbon fiber, so that the visual effect is more stronger, and the painting-free process makes each wheel lighter.

In addition, The race PRO 700C road ultra-light carbon spoke wheelset not only adopts harder and lighter carbon spokes,but also provide excellent rigidity without affecting weight.

The widened internal width of 23mm ensures that you can drive smoothly in all kinds of road conditions, climbing slopes and flat conditions.

In this configuration, this ultra-light carbon spoke wheelset can bring the ultimate experience for cyclists.





carbon spoke ultralight road wheels     FEATURES:

       - Custom laser engraving graphic

       - Ultra-light carbon spoke wheelset
       - Rim weave: UD free paint TECH
       - U shape design aerodynamic advantage
       - Carbon 3.2mm width UD fibre spokes with excellent strength
       - Compatible for 28C-71C tire (tubelees ready)

       - Hub: ORNAN SD16-A hub, straight pull
       - Freehub system: Ratchet 36T or 54T system available
       - Bearing: S&S Ceramic bearing or TPI Ceramic bearing optional
       - Cassette body: Shimano 11s/12s, Sram XDR and Campa N3W optional
       - Axle system: Front 12x100mm, Rear 12x142mm
       - Brake system: Disc center lock
       - Spoke hole count: Fron 20H, Rear 20H
       - Spoke: 3.2mm width flat UD carbon fibre spoke
       - 2 years' quality warranty


SPECIFICATIONS


Model
 Pro-S2335
 Pro-S2338
 Pro-S2340
 Pro-S2345
 Pro-S2350
 Pro-S2355
 Pro-S2358
 Pro-S2360
Cross Section







Sectional Drawing







Material T800 & T1000 T800 & T1000
 T800 & T1000 T800 & T1000
 T800 & T1000
 T800 & T1000
 T800 & T1000
 T800 & T1000
Use Road Road Road Road
 Road
 Road
 Road Road
Type
 Clincher Clincher
 Clincher Clincher
 Clincher
 Clincher
 Clincher
 Clincher
Tubeless
 Ready Ready
 Ready Ready
 Ready
 Ready
 Ready
 Ready
Internal/External Width
 23/32mm 23/32mm
 23/32mm 23/32mm
 23/32mm
 23/32mm
 23/32mm
 23/32mm
Depth
 35mm 38mm 40mm 45mm 50mm
 55mm
 58mm
 60mm
ERD
 575mm 569mm 565mm 555mm 545mm 535mm 529mm 525mm
Weight
 335+/-15g 340+/-15g 340+/-15g 355g+/-15g 380g+/-15g
 400g+/-15g
 410g+/-15g
 430g+/-15g
Weight Limit
 90kg 90kg 90kg 90kg 90kg
 95kg
 95kg
 95kg
Carbon Spoke Tension
 120 ~ 140kgf 120 ~ 140kgf 120 ~ 140kgf 120 ~ 140kgf 120 ~ 140kgf
 120 ~ 140kgf
 120 ~ 140kgf
 120 ~ 140kgf

Max Tire Pressure(with 25C)

110psi / 7.58bar 110psi / 7.58bar
 110psi / 7.58bar 110psi / 7.58bar
 110psi / 7.58bar
 110psi / 7.58bar
 110psi / 7.58bar
 110psi / 7.58bar
Tire Recommended
 28C ~ 71C 28C ~ 71C
 28C ~ 71C 28C ~ 71C 28C ~ 71C
 28C ~ 71C
 28C ~ 71C
 28C ~ 71C

3.2MM UD CARBON SPOKES WHEELSET 700C DISC BRAKE WEIGHT

Model-Wheels Rim Depth Outer Width Hub Front Size Rear Size Spoke 3.2mm Width Weight(+/-3%)
Pro-S2335-SD16-A Pro-S2335 35mm 32mm SD16-A Road Disc 12 x 100mm 12 x 142mm UD Carbon Spokes 1085
Pro-S2338-SD16-A
 Pro-S2338
 38mm 32mm
 SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1095
Pro-S2340-SD16-A
 Pro-S2340
 40mm 32mm
 SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1095
Pro-S2345-SD16-A
 Pro-S2345
 45mm 32mm
 SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1125
Pro-S2350-SD16-A
 Pro-S2350
 50mm 32mm
 SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1175
Pro-S2355-SD16-A
 Pro-S2355
 55mm 32mm
 SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1215
Pro-S2358-SD16-A
 Pro-S2358
 58mm 32mm
 SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1235
Pro-S2360-SD16-A
 Pro-S2360
 60mm 32mm
 SD16-A Road Disc
 12 x 100mm
 12 x 142mm
 UD Carbon Spokes
 1275

FREE PAINT 3.2MM UD CARBON 700C WHEELSET DETAIL

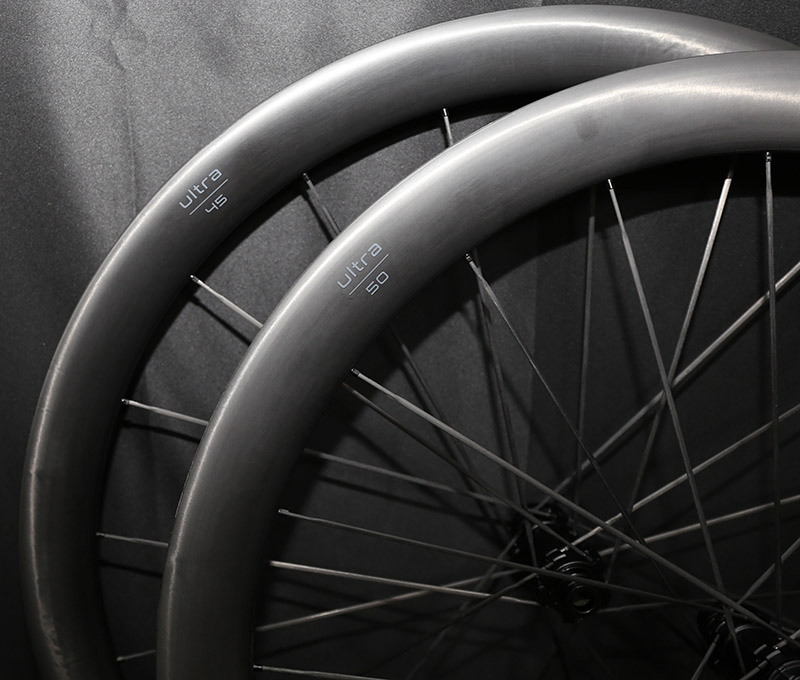

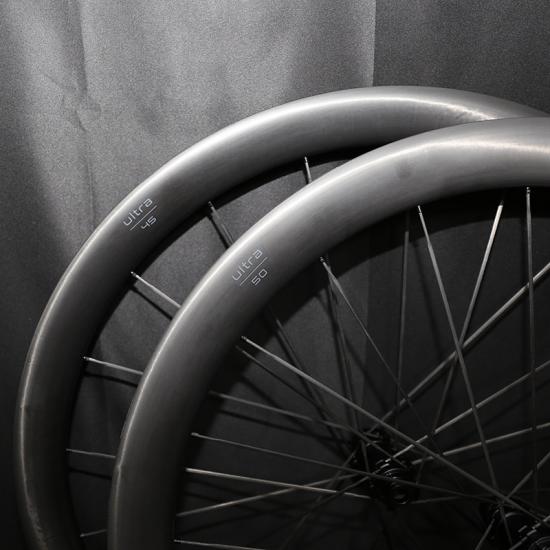

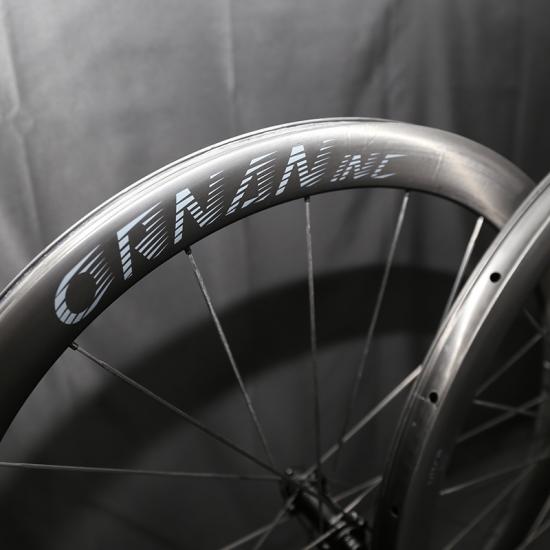

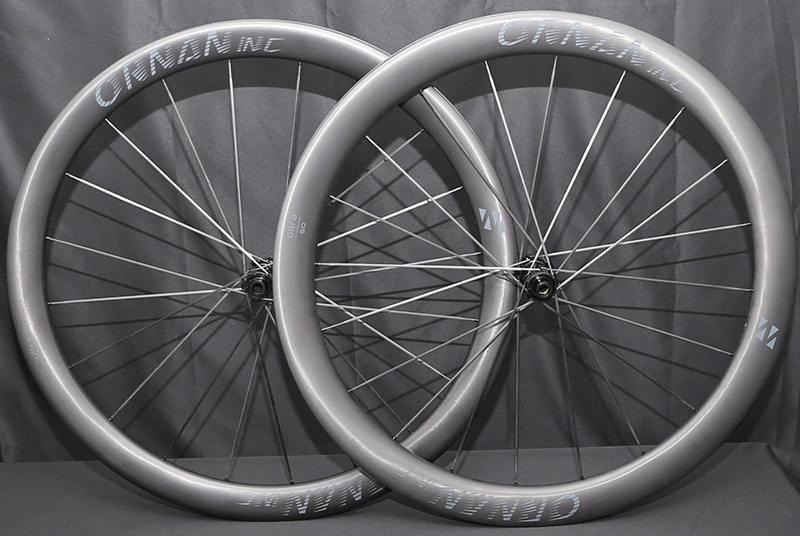

Ornan carbon spoke road wheelset

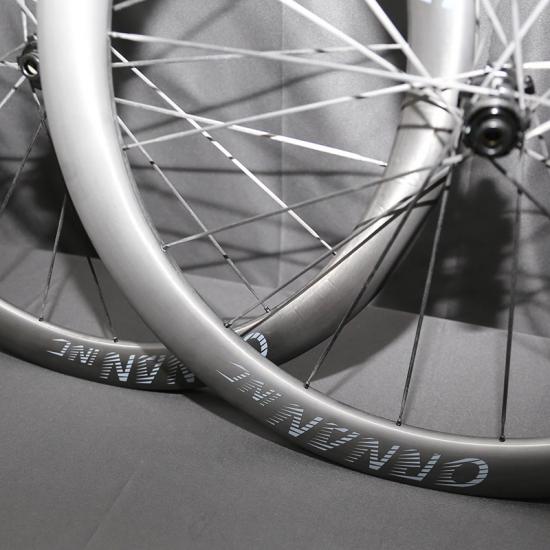

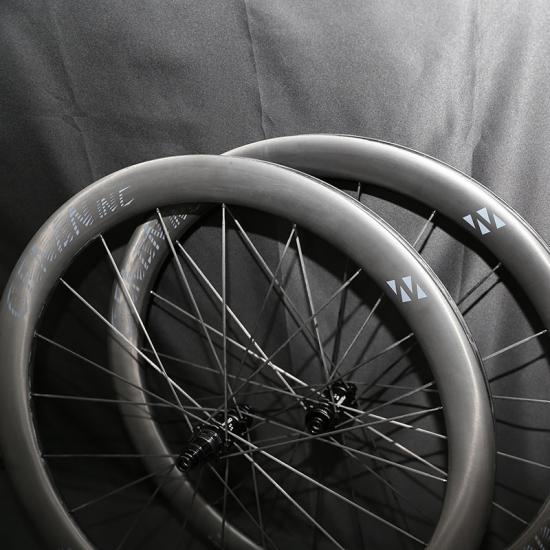

Ornaninc carbon spoke wheelset

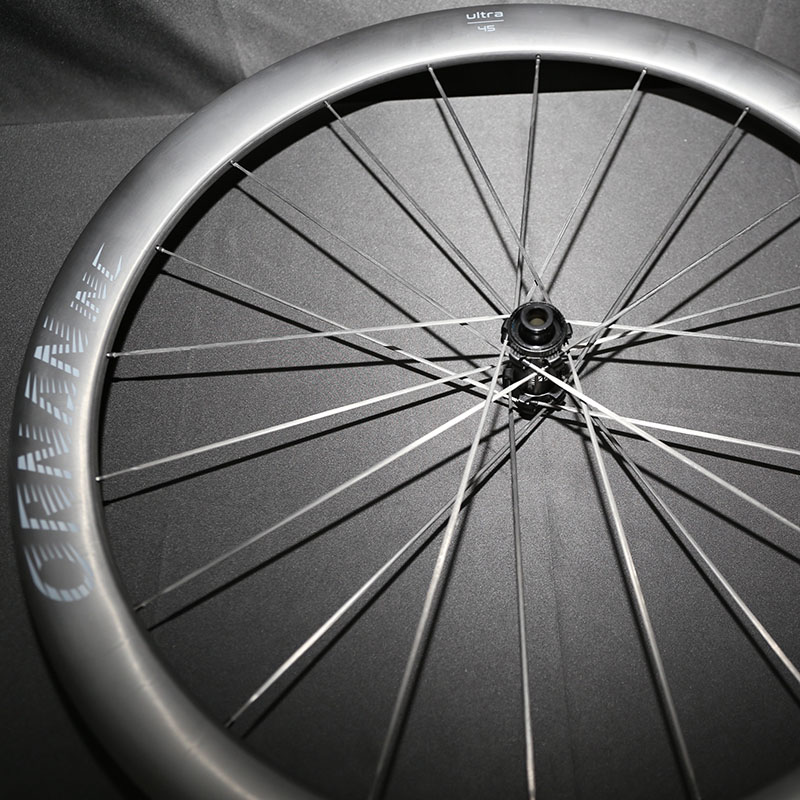

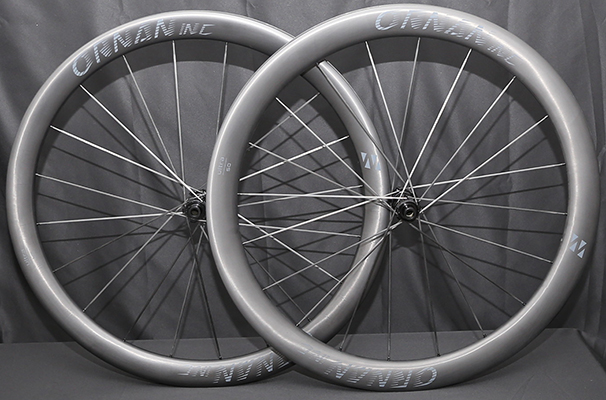

23mm internal width 50mm depth carbons poke wheelset

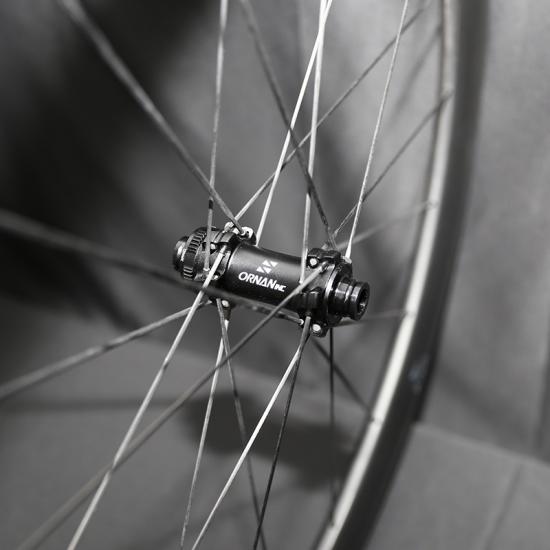

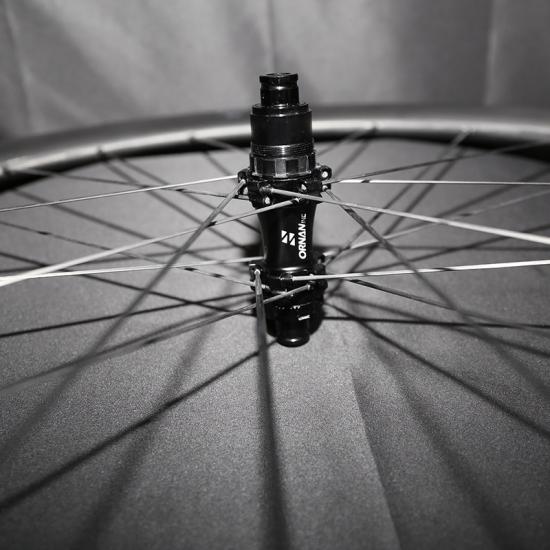

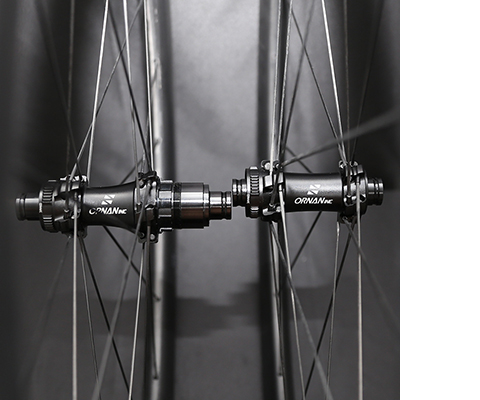

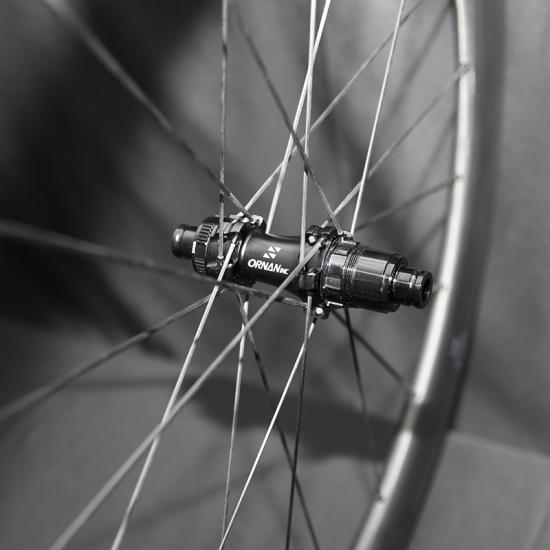

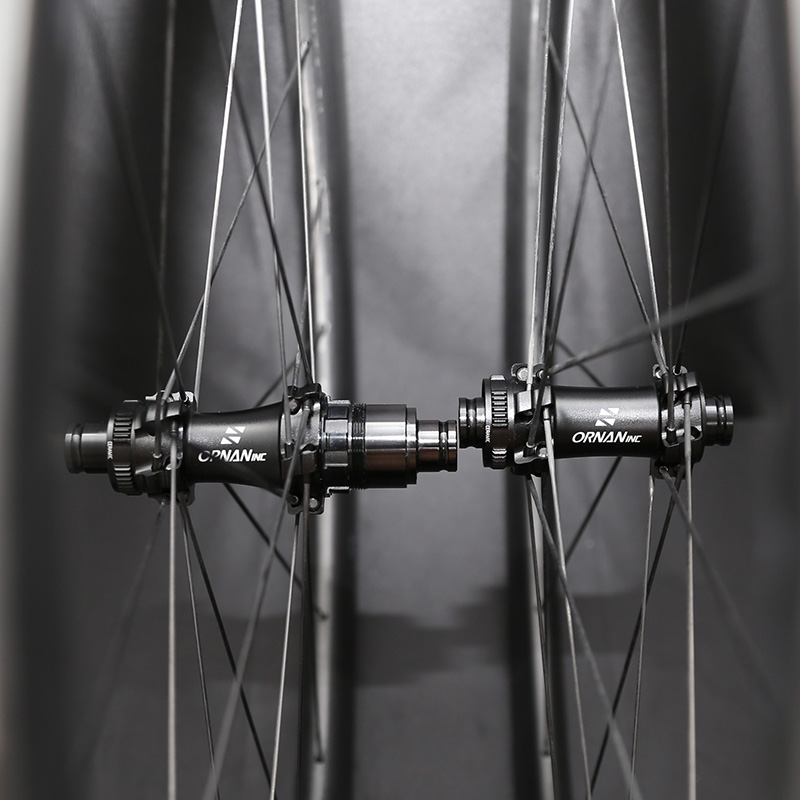

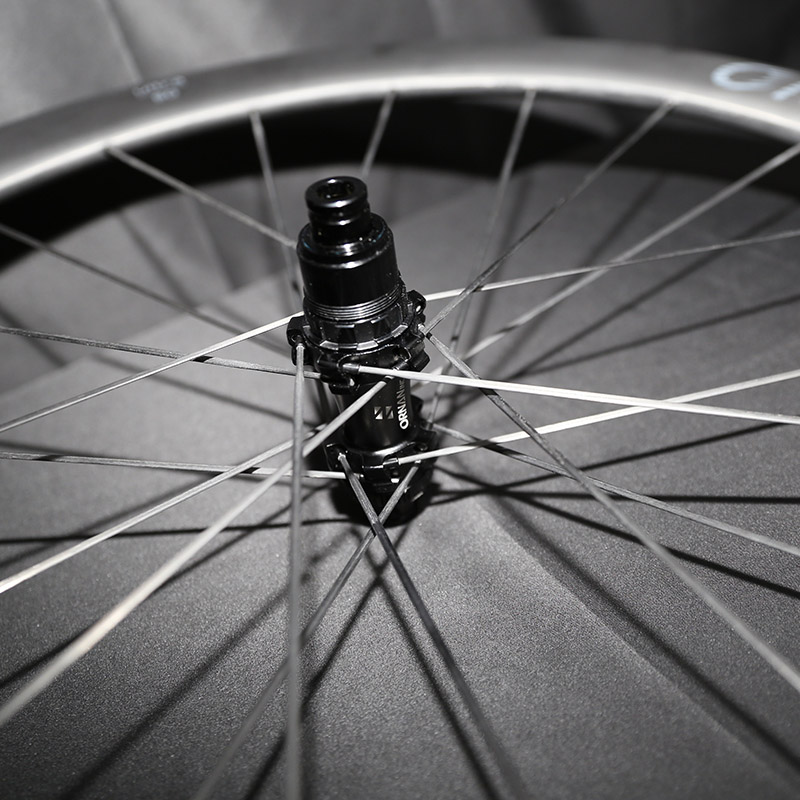

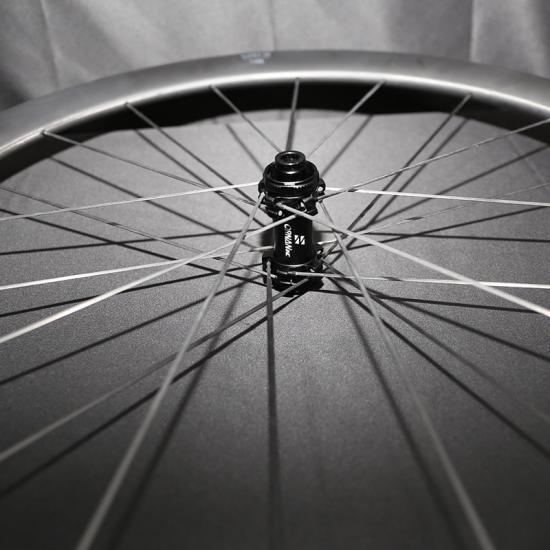

carbon spoke road hub

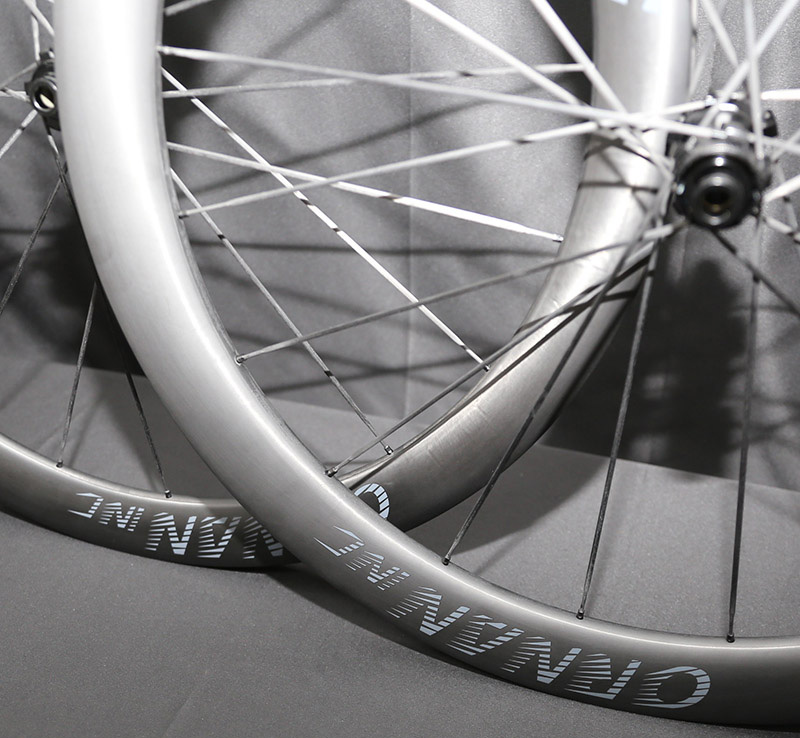

carbon fiber spoke for road wheelset


carbon fiber spoke for bicycle
