/New Gravel E Bike Light Carbon Frames With Integrated Stem System

Gravel E Bike Light Carbon Frames Fit Mahle
Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle Gravel E Bike Light Carbon Frames Fit Mahle

New Gravel E Bike Light Carbon Frames With Integrated Stem System

● 31.6mm seat post
● Full internal cable routing carbon Electric bike
● Shimano flat mount type disc brake
● Front 12*100mm thru axle, rear 10*136mm QR / rear 12*142mm
● Motor system: MAHLE X35/MAHLE X20/FSA E-Bike System (Rear Motor)

  • Item NO.:

    ORNAN R950-D E-Gravel

  • Payment:

    Paypal, Bank Transfer

  • Product Origin:

    China

  • Color:

    UD Matt/Glossy optional (Customized Painting Acceptable)

  • Product weight:

    1060+/-40g (Size 500mm)

  • Brake:

    Disc Brake
Inquiry now
  • Product Detail


R950-D E-Gravel Fit Mahle X35 SPECIFICATION


Ornan R950-D Carbon Gravel Electric Bike Disc Brake Frame

Model name R950-D E-Gravel
Frame Size 470 / 500 / 530 / 570mm
Stem Size
 90 / 100 / 110 / 120mm
Motor system MAHLE X35/FSA E-Bike System (Rear Motor)
Headtube 1-1/2", 1-1/2" (compatible FSA ACR/SMR system)
Bottom bracket BB386
Fork ORNAN specify carbon fork
Seat post ∮31.6mm
Brake mount type Flat mount Disc brake
Groupset Machanical and Di2 compatible, Full Integrated
Dropout Front 12x100mm thru axle, Rear 10*136MM QR
Max tire  700x42C / 650Bx2.1"
Material  High modulus Toray T700 and T800 carbon fiber
Weight 1060g+/-40g (Size: 500mm)
Feature Smooth-wall Technology
Test Standard
 ISO4210
Warranty
 2 years




                                                                                   R955-D E-Gravel Fit Mahle X20 SPECIFICATION

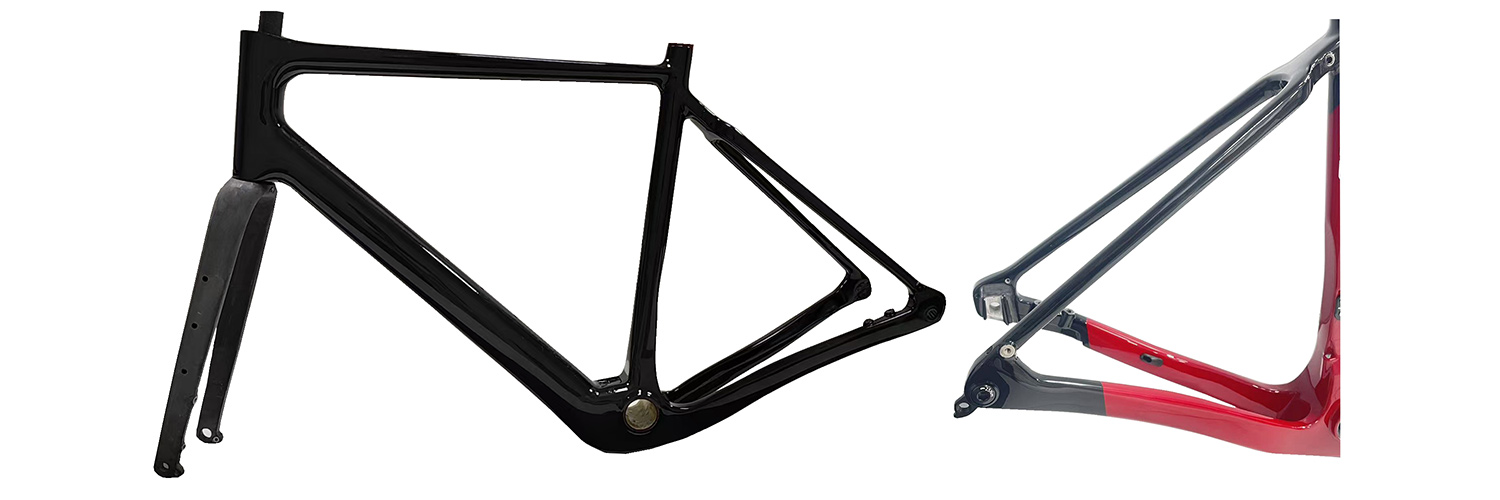

electri bike powered by Mahle X20/X30

Model Name
 R955-D E-Gravel
Frame Size 470/500/530/570mm
Stem Size 90/100/110/120mm
Motor System Mahle X20/FSA E-Bike System(Rear Motor)
Headtube 1-1/2", 1-1/2"(Compatible FSA ACR/SMR system)
Bottom Bracket BB386
Fork ORNAN Specify carbon fork
Seat Post φ 31.06mm
Brake Mount Type Flat Mount Disc Brake
Groupset Machanical and Di2 Compatible, Full Integrated
Dropout Front 12x100mm thru axle, Rear 12*142mm
Max Tire 700x42C/650Bx2.1"
Material High modulus Toray T700 and T800 carbon fiber
Weight 1060g+/-40g(Size:500mm)
Feature Smooth-wall Technology
Test Standard ISO4210
Warranty 2 years



R950/R955-D E-Gravel FRAME GEOMETRY

ORNAN R730-D Carbon Gravel Bike Disc Brake Frame


SIZE 470 500 530 570
SEATPOST INSERT LENGTH 135mm 165mm 200mm 240mm
SEAT TUBE LENGTH 470mm 500mm 530mm 570mm
STACK 557mm 582mm 608.5mm 634mm
REACH 367mm 382mm 392mm 400.5mm
HEAD TUBE LENGTH 136.5mm 161mm 186.5mm 211.5mm
HEAD TUBE ANGLE 70.5° 71°
 71.5°
 72°
BB HEIGHT (700x42C) 285mm 285mm
 285mm
 285mm
BB DROP 70mm 70mm
 70mm
 70mm
TOP TUBE LENGTH, HORIZONTAL 526.5mm 552mm 576.5mm 597mm
SEAT TUBE ANGLE 74° 73.7° 73° 72.8°
CHAINSTAY LENGTH 423mm 423mm 423mm 423mm
FRONT CENTER 596.5mm 615mm 628.5mm 640.5mm
FORK LENGHT, FULL 397mm 397mm
 397mm
 397mm
FORK RAKE/OFFSET 50mm 50mm
 50mm
 50mm
BIKE STANDOVER HEIGHT (700x42C) 756mm 785.5mm 815.5mm 851.5mm
TRAIL 72.7mm 69.5mm 66mm 62.8mm
WHEELBASE 1009.7mm 1028mm 1042mm 1053.5mm
WEIGHT 1030+/-40g 1060+/-40g 1085+/-40g 1125+/-40g


ebike power by mahle smartbike system


Ebike with UDH hanger


Full internal route ebike MAHLE smartbike system


Mahle ebike X35 motor


electric gravel bike Mahle X35 rear system


carbon Ebike charging port


Ebike with battery inside down tube


lighter more power ebike frame clearance
