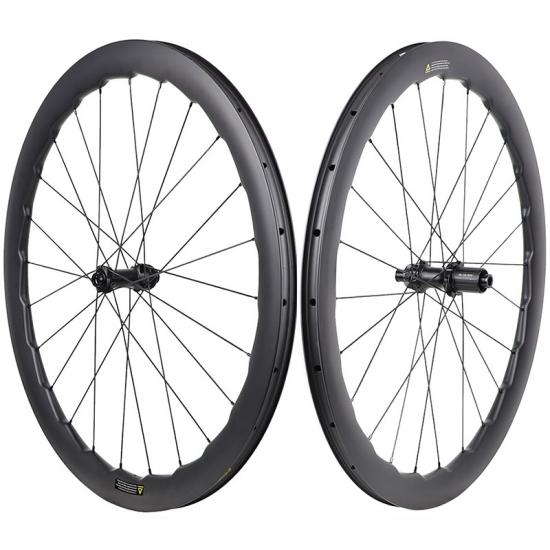

Carbon Spokes Wheelset Race Pro 700C Road Bike Disc Brake

● Ratchet 36T system

● UD carbon fibre spoke

● Custom laser engraving graphic

● 35mm, 45mm, 50mm depth optional

  • Payment:

    Paypal, Bank Transfer
  • Product Origin:

    China
  • Color:

    UD (Customized Decal Acceptable)
  • Brake:

    Disc Brake
  • Hole Count:

    F-21H / R-24H
  • Standard:

    EN Standard
  • Level:

    Top Racing
  • Product Detail


DESCRIPTION


ORN728 CARBON WHEELS CLINCHER DISC BRAKE

Race Pro Series carbon fibre spoke wheelsets use a custom hubset with oversized axles for stiffness, large ceramic bearings for superior rolling resistance and a large flange for optimum spoke angle and wheels stiffness and strength.


Carbon spokes provide higher stiffness and better fatigue life, aero and light. UD carbon spokes are 30% stiffer than steel spokes.


The optimized U-shaped design profile aerodynamics of the carbon rims will ensure you get the fastest speed possible.


We have 3 Race Pro of carbon wheelsets for you to choose from, Pro-S3535, Pro-S4545 and Pro-S5050 Suitable for top racing level, perfect transmission of your power.


Carbon spokes wheels can be made with your customized logo (Laser Engraving Graphic logo or make Stickers on the rims or hubs).

So it will become your own brand hubs!





ORN728 CARBON WHEELS CLINCHER DISC BRAKE FEATURES:

Custom laser engraving graphic

- U shape design aerodynamic advantage

- Carbon fibre spokes with excellent strength

- Compatible for 700x25C-35C tire (tubelees ready)


- Hub: ORNAN SD16 hub, straight pull

- Freehub system: Ratchet 36T system

- Bearing: S&S, Enduro, Ceramic bearing optional

- Cassette body: Shimano 11s/12s or Sram XDR optional

- Axle system: Front 12x100mm, Rear 12x142mm

- Brake system: Disc center lock

- Spoke hole count: Fron 21H, Rear 24H

- Spoke: UD carbon fibre spoke

- 2 years' quality warranty




SPECIFICATIONS


Model
Pro-S3535
Pro-S4545
Pro-S5050
Cross Section



Sectional Drawing



Material T700 & T800 T700 & T800
T700 & T800
Use Road Road Road
Type
Clincher Clincher
Clincher
Tubeless
Ready Ready
Ready
Internal/External Width
21mm/27mm 21mm/27mm
21mm/28mm
Depth
35mm 45mm 50mm
ERD
569mm 549mm 539mm
Weight
410+/-15g 450+/-15g 470+/-15g
Weight Limit
125kg 130kg 130kg
Carbon Spoke Tension
120 ~ 140kgf 120 ~ 140kgf 120 ~ 140kgf

Max Tire Pressure(with 25C)

110psi / 7.58bar 110psi / 7.58bar
110psi / 7.58bar
Tire Recommended
25C ~ 35C 25C ~ 35C
25C ~ 35C


CARBON SPOKES WHEELSET 700C DISC BRAKE WEIGHT


Model-Wheels
Rim
Depth
Outer Width
Hub
Front Size
Rear Size
Spoke Weight (+/-3%)
Pro-S3535-SD16 Pro-S3535 35mm 27mm SD16 Road Disc 12 x 100mm 12 x 142mm Carbon Spokes 1298g
Pro-S4545-SD16
Pro-S4545
45mm 27mm SD16 Road Disc
12 x 100mm
12 x 142mm
Carbon Spokes
1378g
Pro-S5050-SD16 Pro-S5050 50mm 28mm SD16 Road Disc 12 x 100mm 12 x 142mm Carbon Spokes 1418g


TECHNOLOGY


1. Tubeless Compatible Technology

The bump on the rim bed helps to create a buffer during tire inflation, making the mounting process easier. The bead locks allow for an easy switch between clinchers and tubeless setup.


2. Ultra Smooth Inner Wall

Use specific, thinner, high-pressure air bladders to control the inner wall smoothness, The result is that we could see a very clean and smooth inner wall, which means the carbon fabrics are stretched smoothly and optimized. This could ensure the best strength of the fabrics.


3. Fast Tire Installation

Easy installation and removal of normal tube tires and tubeless tires.


4. Double Wall Design and Aero Technology

We use a double wall design to better control the rim strength and stiffness during layup. Rim profiles are specially designed with aero gains and drag reduction in mind.


5. Customized Spoke Hole Angle Drilling Technology

High-speed CNC machine tools drill carbon fiber rim spoke holes. Customized according to the geometric angle of the hub. Check all drill holes to make sure they are free of burrs.









Carbon spoke wheelset with 700C disc brake carbon R902-D frame



CARBON SPOKE WHEELSET RACE PRO 700C


HD carbon fiber spokes wheelset link video: https://www.youtube.com/watch?v=VYuAHez5FAY
