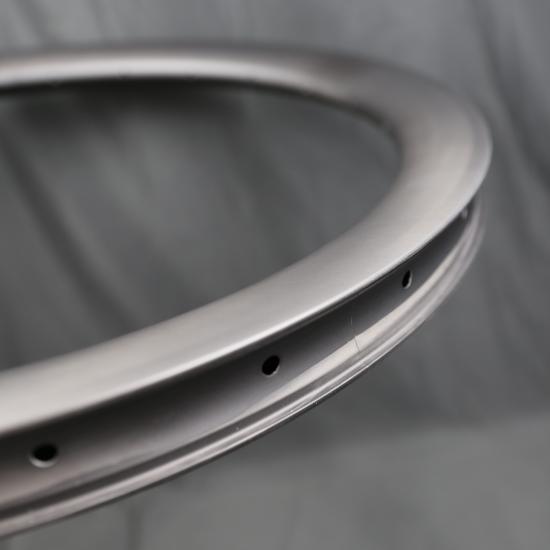

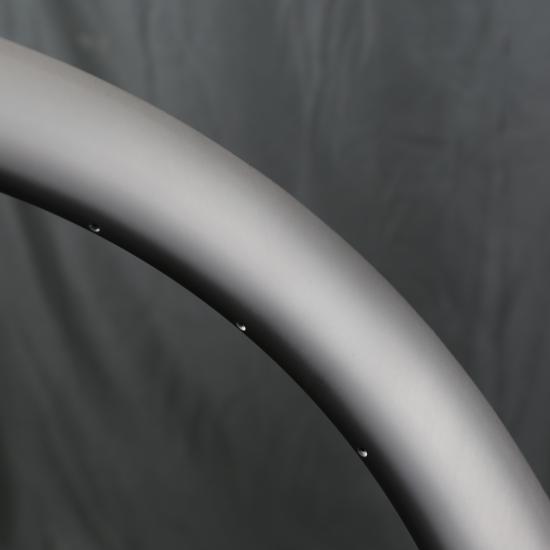

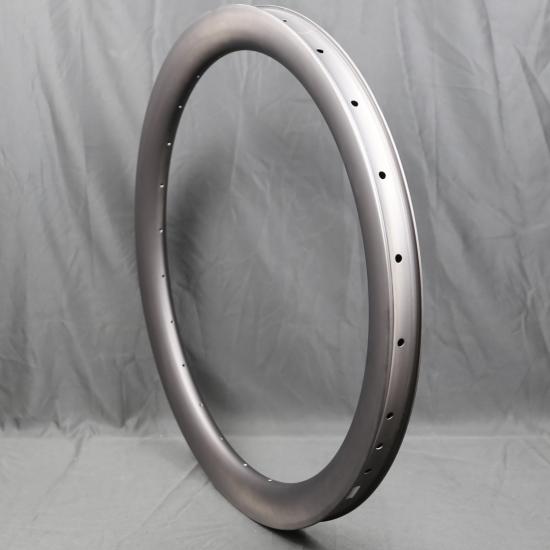

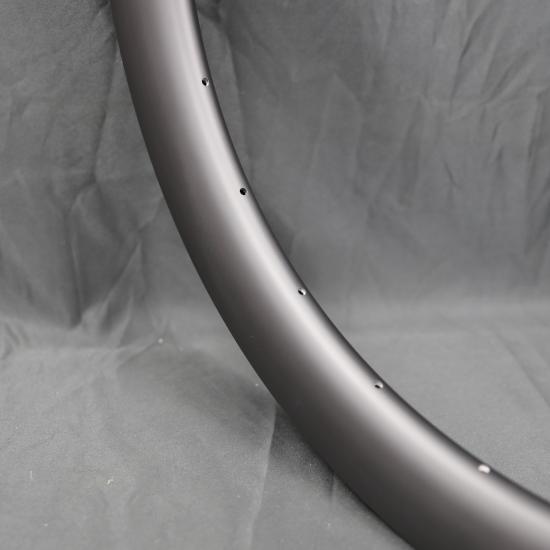

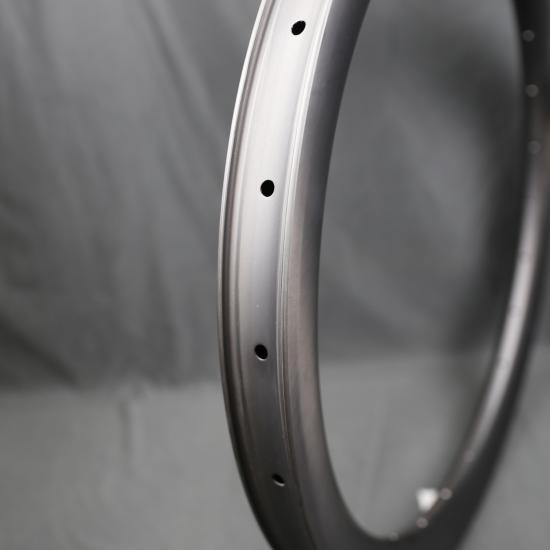

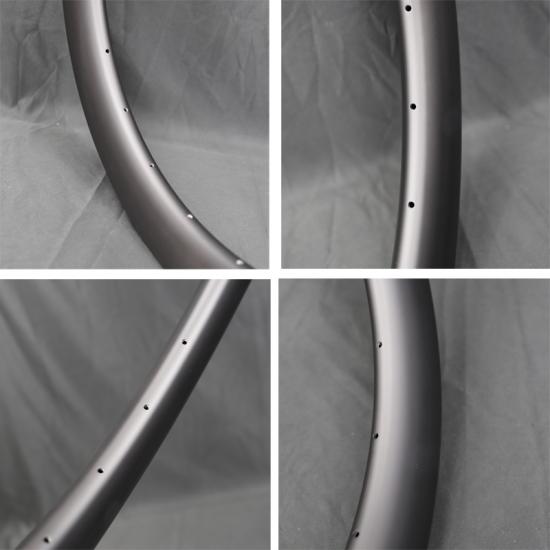

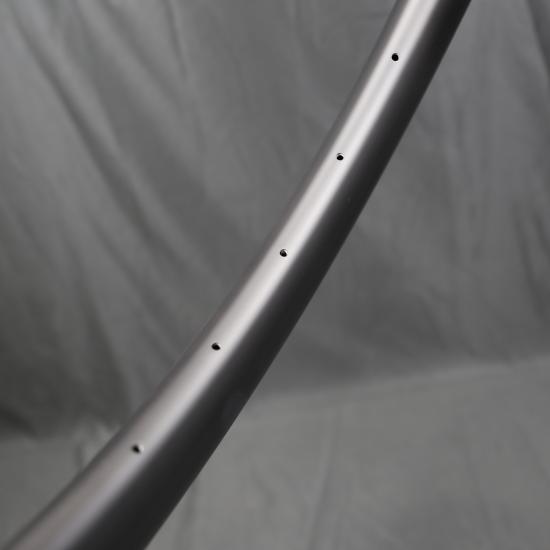

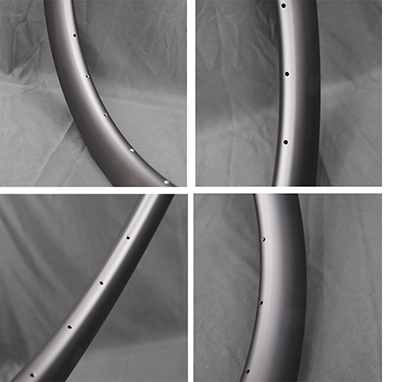

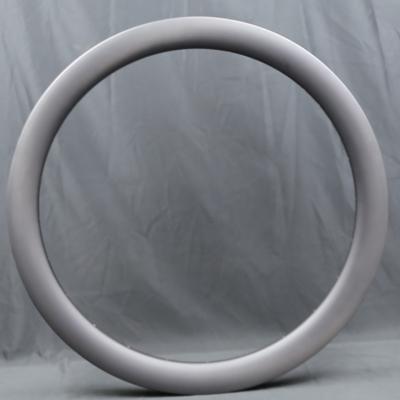

700C Ultra-Wide 35mm/36mm Internal Width Carbon Gravel Rim

DECRIPTION:

As gravel racing continues to move toward wider, higher-volume tires, rim width plays an increasingly important role in tire support and stability. The 35mm hooked / 36mm hookless internal width platform provides a broader base for 45–70C gravel tires, helping support the tire casing and maintain a more stable profile at lower operating pressures.

With a 42mm external width and deep-section profiles from 47mm to 67mm, the series is developed for performance-oriented gravel wheel builds ranging from fast mixed-terrain riding to long-distance racing.

Features：

- 35mm Hooked / 36mm Hookless Internal Width

- Ultra-wide gravel platform designed to provide greater support for high-volume tires.

- 47mm / 52mm / 58mm / 67mm Depth Options

- Multiple deep-section profiles for different gravel wheelset positioning and OEM product development.

 - U-Shaped Deep-Section Profile

 - Developed for smoother rim-to-tire integration in performance-oriented gravel wheel builds.

 - Three Carbon Layup Options

 - Standard, Flyweight and Ultralight constructions available for different weight, rider-limit and product-positioning requirements.

 - Customization Available — Custom drilling, decals, finish and wheelset specifications available

36mm IW Hooked SPECIFICATIONS

Model	GP-3547CH	GP-3552CH	GP-3558CH	GP-3567CH
Sectional Drawing
Material	T700 & T800 (Standard weight) T800 & T1000 (Flyweight) T1100(Ultralight)	T700 & T800 (Standard weight) T800 & T1000 (Flyweight) T1100(Ultralight)	T700 & T800 (Standard weight) T800 & T1000 (Flyweight) T1100(Ultralight)	T700 & T800 (Standard weight) T800 & T1000 (Flyweight) T1100(Ultralight)
Use	Gravel/CX	Gravel/CX	Gravel/CX	Gravel/CX
Type	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready
Internal/External Width	35mm/42mm	35mm/42mm	35mm/42mm	35mm/42mm
Depth	47mm	52mm	58mm	67mm
ERD(Include Nipple)	551mm	541mm	531mm	521mm
Standard Weight	515+/-15g	535+/-15g	550+/-15g	585+/-15g
Flyweight	460+/-15g	480+/-15g	515+/-15g	535+/-15g
Ultralight weight	400+/-15g	425+/-15g	455+/-15g	480+/-15g
Standard Weight Limit Flyweight Limit Ultralight Limit	135kg 100kg 90kg	135kg 100kg 90kg	135kg 100kg 90kg	135kg 100kg 90kg
Spoke tension	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure(with 45C)	55psi/3.79bar	55psi/3.79bar	55psi/3.79bar	55psi/3.79bar
Tire Recommended	45C ~ 70C	45C ~ 70C	45C ~ 70C	45C ~ 70C

Model	GP-3647C	GP-3652C	GP-3658C	GP-3667C
Sectional Drawing
Material	T700 & T800 (Standard weight) T800 & T1000 (Flyweight) T1100(Ultralight)	T700 & T800 (Standard weight) T800 & T1000 (Flyweight) T1100(Ultralight)	T700 & T800 (Standard weight) T800 & T1000 (Flyweight) T1100(Ultralight)	T700 & T800 (Standard weight) T800 & T1000 (Flyweight) T1100(Ultralight)
Use	Gravel/CX	Gravel/CX	Gravel/CX	Gravel/CX
Type	Clincher	Clincher	Clincher	Clincher
Tubeless	Ready	Ready	Ready	Ready
Internal/External Width	36mm/42mm	36mm/42mm	36mm/42mm	36mm/42mm
Depth	47mm	52mm	58mm	67mm
ERD(Include Nipple)	551mm	541mm	531mm	521mm
Standard Weight	515+/-15g	535+/-15g	550+/-15g	585+/-15g
Flyweight	460+/-15g	480+/-15g	515+/-15g	535+/-15g
Ultralight Weight	400+/-15g	425+/-15g	455+/-15g	480+/-15g
Standard Weight Limit Flyweight Limit Ultralight Limit	135kg 100kg 90kg	135kg 100kg 90kg	135kg 100kg 90kg	135kg 100kg 90kg
Spoke tension	130kgf	130kgf	130kgf	130kgf
Max Tire Pressure(with 45C)	55psi/3.79bar	55psi/3.79bar	55psi/3.79bar	55psi/3.79bar
Tire Recommended	45C ~ 70C	45C ~ 70C	45C ~ 70C	45C ~ 70C
