Welcome to Xiamen Ornanbike Composite Technology Co., Ltd.

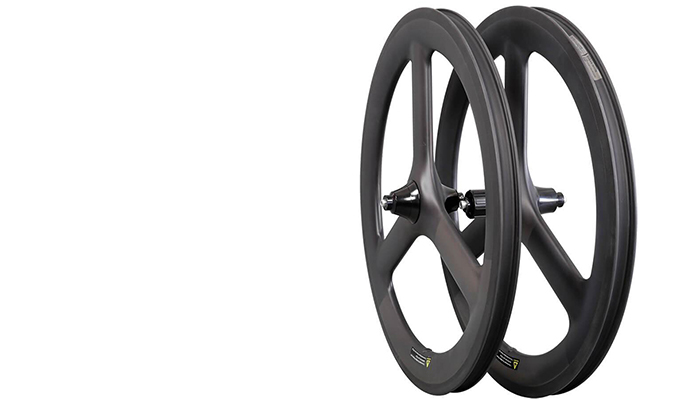

Carbon Tri Spoke Wheels 20 Inch 406 Folding Ride Rim Brake Carbon Wheelset 25mm Wide 48mm Deep

Hand-built tri spoke folding 20 inch 406 carbon 3 spoke bicycle wheels with a width of 25mm and a depth of 48mm for rim brake carbon wheels.

  • Item NO.:

    Orn3-20"-406
  • Payment:

    Paypal, Bank Transfer
  • Product Origin:

    China
  • Color:

    UD/3K/3K Twill/12K/12K Twill (Customized Decal Acceptable)
  • Product weight:

    1340g±30
  • Material:

    Full Carbon Toray T700
  • Product Detail

CARBON TRI SPOKE WHEELS 20 INCH 406 RIM BRAKE



DESCRIPTION


Whether you're riding to work, around town, or through the park. 20 inch 406 folding riding carbon tri spoke wheels rim brake has excellent performance, Let you reach your destination fast. suitable for advanced aerodynamic manufacturing and compatible with the design of tubeless tires.

There are no EPS bubbles in the manufacturing process of the rim, this means the rims are molded with a air bag that has the inner shape of the rim. So the rim is complete, stronger and stiffer. Full carbon Toray T700, Provide UD, 3K, 3K twill, 12K, 12K twill weave carbon fiber wheels.









CARBON WEAVE PICTURE DISPLAY




WHEELSET SPECS



Model Orn3-20"-406 Hub Specifications
Sectional Drawing


Use Folding/Brompton/Road Hub Fastace
Type Clincher Bearing Front: Japan EZO, Rear: Germany FAG
Tubeless Ready Material
AL6061
Internal/External Width 18mm/25mm Front Axle Size
9 x 100mm
Depth 48mm Rear Axle Size
10 x 130mm
OD 418mm Driver Body
Shimano 11S or Sram XDR
Spoke 3S Brake System Rim Brake
Brake Surface Basalt / 3K Twill

Weight Limit 130kg

Tire Recommended 20" x 1-1/8, 1-1/4, 1-3/8

Leave Message
If You Are Interested In Our Products And Want To Know More Details,Please Leave A Message Here,We Will Reply You As Soon As We Can.

RIMS FOR EVERY CONDITION
