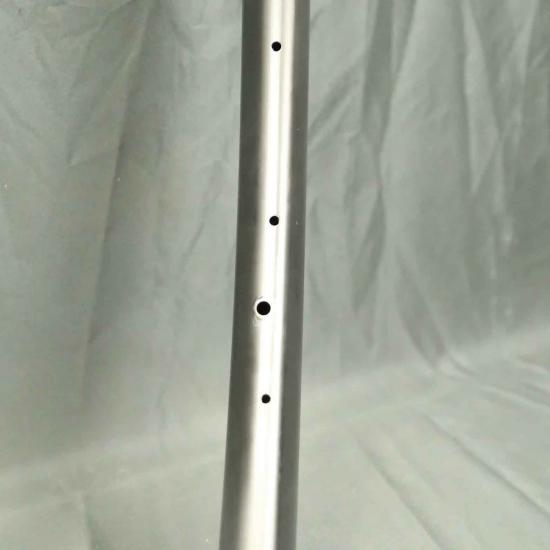

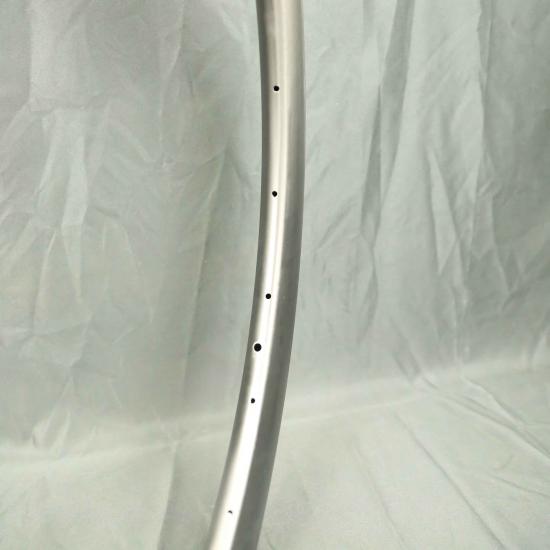

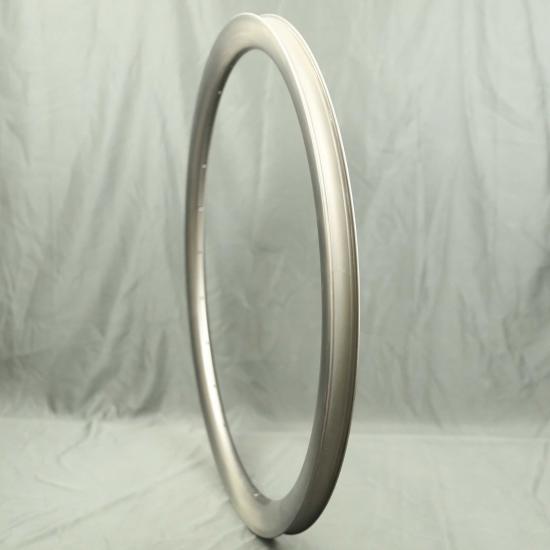

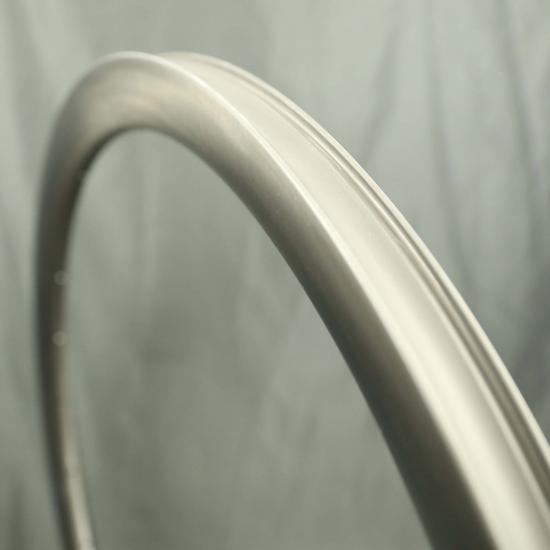

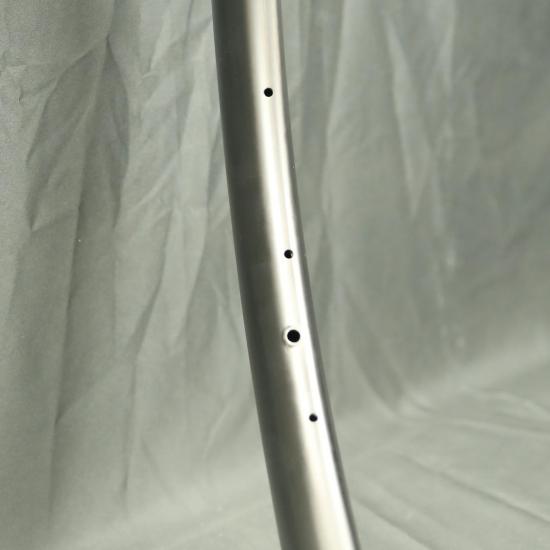

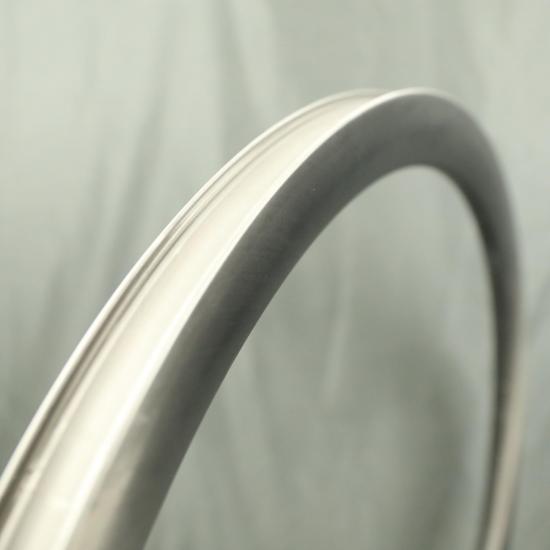

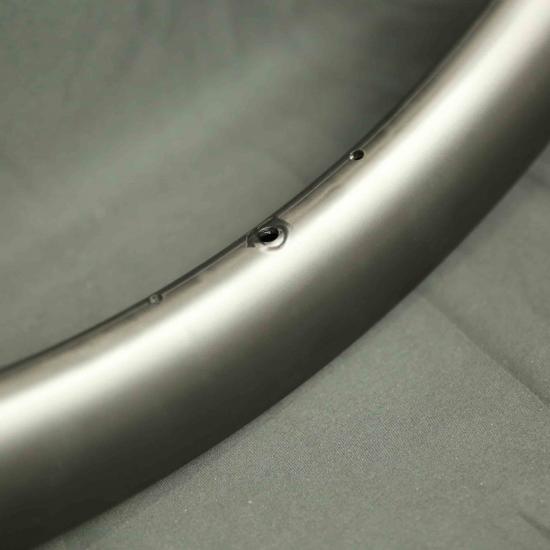

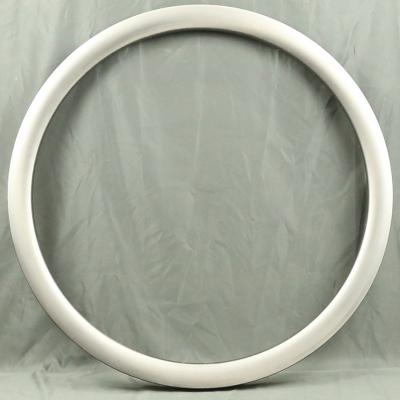

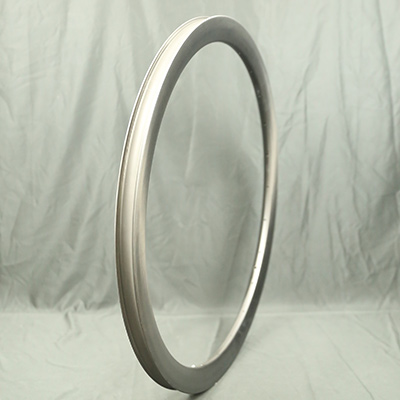

G27series is 32inch carbon gravel rim developed for custom 32er gravel and mixed-surface wheel builds. It combines a 27mm internal width, 33mm external width, 45mm depth and 2.8mm asymmetric offset with hooked or hookless tubeless-ready profiles. 3 kinds of weight versions are available, Individual rims and customized complete wheel builds are available.
Payment:
Paypal, Bank TransferProduct Origin:
ChinaColor:
UD matte/glossy (Customized Decal Acceptable)Product type:
Carbon Gravel RimWheel size:
32 Inch / 32erBrake:
Disc BrakeIntended Use:
GravelHole Count:
24H/28H/32H /(Customized drill holes Acceptable)
Why Consider a 32-Inch Gravel Wheel?

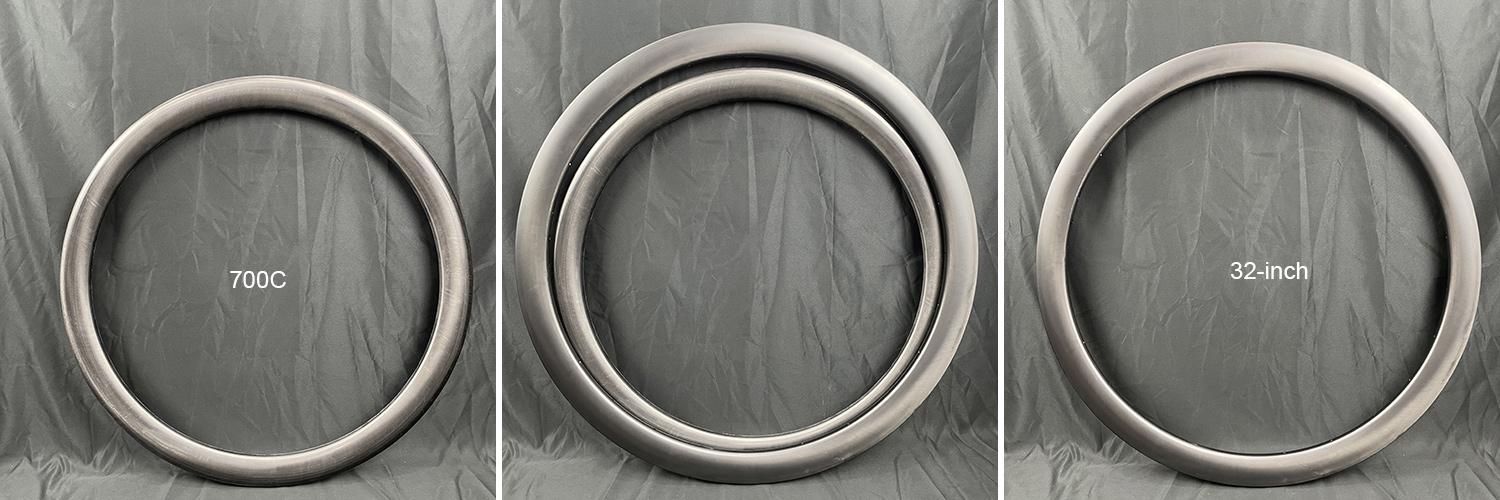

32-inch carbon gravel wheels subvert traditional design concepts and redefine the all-terrain adventure experience. 32-inch gravel rim's diameter is 64mm larger than that of conventional 700c wheels, delivering superior traversability and long-distance riding efficiency.
32-Inch gravel carbon rim series is 27mm internal with and 33mm external width, the 27mm internal channel supports the intended high-volume gravel tire range, while the 33mm external width creates a controlled transition between the rim and a compatible mounted tire. The 45mm profile is designed for riders and brands seeking a deeper gravel rim shape. 2.8mm Asymmetric Offset design helps reduce the difference between left- and right-side spoke bracing angles and can support a more balanced spoke-tension distribution.
FEATURES:
- Hybrid construction of Toray T700, T800, T1000
- Extremely high scrolling efficiency
- Excellent passability and stability
- More traction in rough corners
- Smoother ride in rocky terrain
- Ability to run lower tire pressure
- Reduced rider fatigue
- 2.8mm offset asymmetrical rim design
- Compatible for 2.0"-2.4" tire (tubeless ready)
- Hook and hookless options
- 2 years’ quality warranty
- Custom steel or carbon spokes(20H/24H) wheel builds available
32-inch Gravel Rim SPECIFICATIONS
T700 & T800 (Standard weight)
T800 & T1000 (Flyweight)
T1100(Ultralight)
T700 & T800 (Standard weight)
T800 & T1000 (Flyweight)
T1100(Ultralight)
Standar Weight Limit
Flyweight Weight Limit
Ultralight Weight Limit
140kg
120kg
100kg
140kg
120kg
100kg
Max Tire Pressure
Model
G27-45CH
G27-45C
Sectional Drawing
Material
Offset
2.8mm
2.8mm
Use
CX/Gravel
CX/Gravel
Type
Hooked
Hookless
Tubeless
Ready
Ready
Internal/External Width
27mm/33mm
27mm/33mm
Depth
45mm
45mm
ERD(Include Nipple)
618mm
618mm
Standard weight
520+/-15g
520+/-15g
Flyweight
470+/-15g
470+/-15g
Ultralight
430+/15g
430+/-15g
Spoke Tension
≤130kgf
≤130kgf
35psi/2.41bar
35psi/2.41bar
Tire Recommended
2.0" ~ 2.4”
2.0" ~ 2.4”
Remark: We support to customize 32 inch gravel wheels, including steel spoke wheels and carbon spoke wheels. (Contact us to learn more: info@ornanbike.com)
Besides carbon rims, ORNAN also offers full wheelset building service with your pick of 32'' gravel rims. Both carbon spokes and steel spokes are available. See configurable options below.
Steel spoke hub
Hub Model
RD20
RD25


Spoke hole counts
F/R 24H
F/R 24H (optional 2:1 or 1:1)
Weight
280+/-5g
307+/-5g
Brake system
Disc Center Lock
Disc Center Lock
Spoke type
Straight-Pull
Straight-Pull
Bearing type
Optional steel or ceramic
Optional steel or ceramic
Freehub system
36T integrated ratchet
36T integrated ratchet
Freehub Body
Shimano 11/12S, MSR, Sram XDR, N3W
Shimano 11/12S, MSR, Sram XDR, N3W
Axle system
F: 12x100mm, R: 12x142mm
F: 12x100mm, R: 12x142mm
Steel spokes
Brand
Sapim
ORNAN
Model
Leader
SF01
Type
Optional Straight-Pull/J-Bend
Straight-Pull
Shape
Round
Flat
Weight
7.5g/pc
4.7g/pc
Carbon spoke hub
Hub Model
SD17
SD18


Spoke hole counts
F/R 20H
F/R 20H
Weight
280+/-5g
260+/-5g
Brake system
Disc Center Lock
Disc Center Lock
Spoke type
Straight-Pull
Straight-Pull
Bearing type
Optional steel or ceramic
Optional steel or ceramic
Freehub system
36T integrated ratchet
New design ratchet 36T
Freehub Body
Shimano 11/12S, MSR, Sram XDR, N3W
Shimano 11/12S, MSR, Sram XDR, N3W
Axle system
F: 12x100mm, R: 12x142mm
F: 12x100mm, R: 12x142mm
UD carbon spokes
Width
3.2mm
Type
T‑Head / Round Head
Shape
Flat
Weight
3.6g/pc
RIMS FOR EVERY CONDITION
