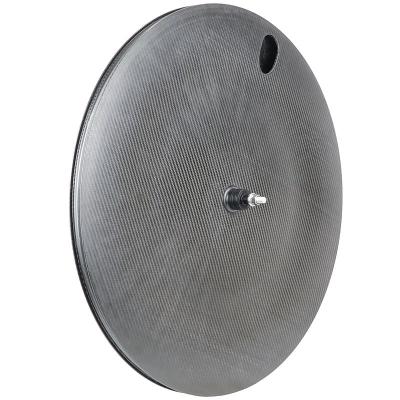

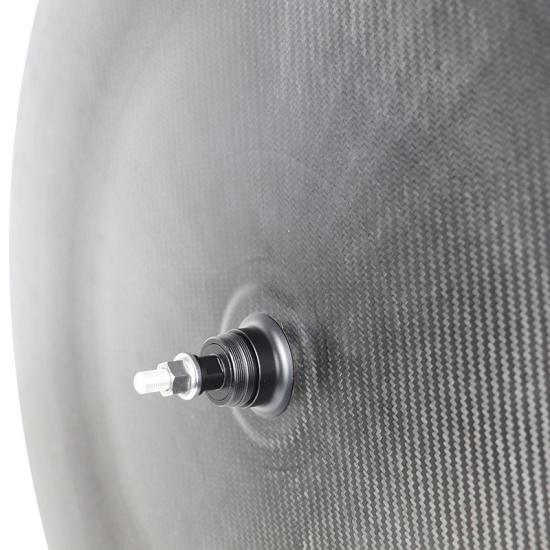

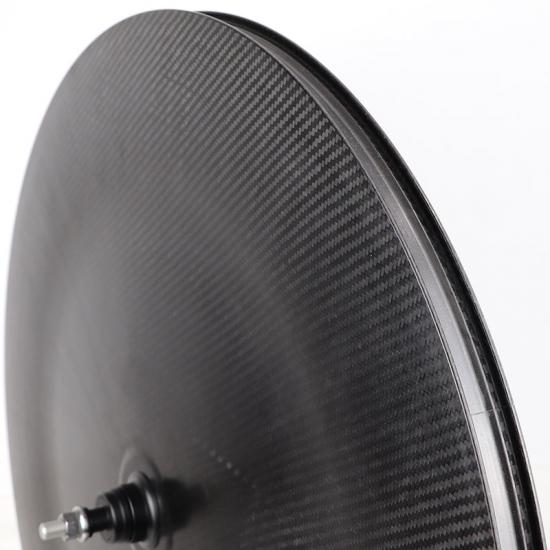

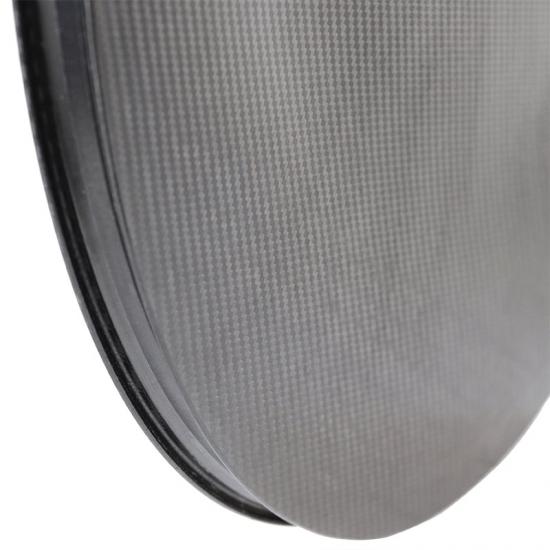

Symmetric and Asymmetric 700C full disc wheels for track

● Clincher tubeless ready

● Aero, durable, light weight

● Tire Pressure: 125psi/8.6bar

● Compatible for 700*25C-35C tire
● Inner 21mm, outer width 27mm (PRO-10)
Inner 19mm, outer width 26.6mm (PRO-9)

● Symmetric and asymmetric design optional

● 2 years' quality warranty

  • Item NO.:

    PRO-9, PRO-10
  • Payment:

    Paypal, Bank Transfer
  • Product Origin:

    China
  • Color:

    UD/3K Twill/1K (Customized Decal Acceptable)
  • Product Detail

How do you win time trials, triathlons and track cycling? Choose the symmetrical or asymmetrical design of a full disc wheel with a hollow design that greatly reduces weight and improves wheel durability. Achieve better aerodynamics in your ride.

Inner width of 19/21mm, outer width of 26.6/27mm, optimized aerodynamics for 700x25C~35C tires. Tubeless compatible, optimized for wide tires, reduces tire pressure, reduces rolling resistance, increases grip and compliance.

We have 2 weight version options:
● Standard version with Toray T700+T800 carbon fiber, with UD and 3K twill carbon weaves options.
● The ultra-light version uses Toray T800+1K carbon fiber with a new process of no-paint 1K appearance.



SPECIFICATIONS


Model Materail Inner/Outer Width Category Max Weight Limit  Brake system Tire Type Terrain Front/Rear Hub Rear Size
Weight(+/-50g)
PRO-10 T700+T800
21mm/27mm Full disc rear wheels 120kg N/A

Clincher

Tubeless ready

Track Rear ORNAN RT06 10x120mm 1200g
PRO-10-S
T800+1K
21mm/27mm Full disc rear wheels
110kg N/A

Clincher

Tubeless ready

Track
Rear
ORNAN RT06
10x120mm
1050g
PRO-9 T700+T800 19mm/26.6mm
Full disc rear wheels 120kg N/A

Clincher

Tubeless ready

Track Rear ORNAN RT06 10x120mm 1200g
PRO-9-S T800+1K 19mm/26.6mm Full disc rear wheels 110kg N/A

Clincher

Tubeless ready

Track Rear ORNAN RT06 10x120mm 1050g
