Light Carbon Tubular Wheels With DT Swiss 180 Ceramic Bearing Hub

Hand-built carbon 700C tubular wheels with DT swiss 180 ratchet EXP 36 and SRAM XDR driver body center lock straight pull hub and high end Sapim CX-Ray spoke, which is light, stiff, durable and easy to maintain, suitable for professional riders or racers.

  • Item NO.:

    Orn725-30T-D-DT180
  • Payment:

    Paypal, Bank Transfer
  • Product Origin:

    China
  • Color:

    UD/3K (Customized Decal Acceptable)
  • Product weight:

    1205g+/-3%
  • Brake:

    Disc Brake
  • Hole Count:

    F-24H / R-24H
  • Standard:

    EN Standard
  • Product Detail

LIGHT CARBON 700C U SHAPE TUBULAR WHEELS WITH DT SWISS 180 HUB



ORN900 CARBON 29ER WHEELS DISC BRAKEDESCRIPTION


For carbon tubular, this is a pair of ultra-light carbon fiber wheels with high-end DT Swiss 180 hubs, which have amazing climbing characteristics and sufficient aerodynamics. 30 mm deep, 25 mm aero U-shaped profile. there can be little argument that tubular tires are the best option for ultimate 'cross performance. The primary reason for this is of course the impossibility of 'burping' air out of your tire when cornering hard. At the same time, it is also ready to become the best CX racing rims and wheels on the market. suitable for professional riders or racers.













ORN900 CARBON 29ER WHEELS DISC BRAKEFEATURES:


- Full Carbon Toray T700


- 30 mm deep, 25 mm aero U-shaped profile


- Double wall design, for better strength and stiffness


- The high-end DT Swiss 180 hub set can roll effectively

whether you are pedaling or sliding, reducing drag and friction


- Built with high-end sapim CX Ray Straight pull spokes, aero and light


- Sram XDR / Shimano 11S driver bodies





WHEELSET SPECS


Model Orn725-30T-D Hub Specifications:
Cross Section
CENTER LOCK CARBON TUBULAR WHEELSET
Sectional Drawing
Material T700 Hub DT Swiss 180 Ratchet EXP 36
Use
Road/CX
Spoke
Sapim CX Ray
Type Tubular Nipples
Sapim Self-Locking
Tubeless NO Driver Body
Shimano 11S / Sram XDR
External Width 25mm Brake System
Disc Brake Center Lock
Depth 30mm Front Thru Axle
12 x 100mm
ERD 584 Rear Thru Axle
12 x 142mm
Weight 335+/-15g Hole Count
F-24H / R-24H
Weight Limit 125kg

Spoke Tension 115 ~ 130kgf

Tire Recommended 23C ~ 28C

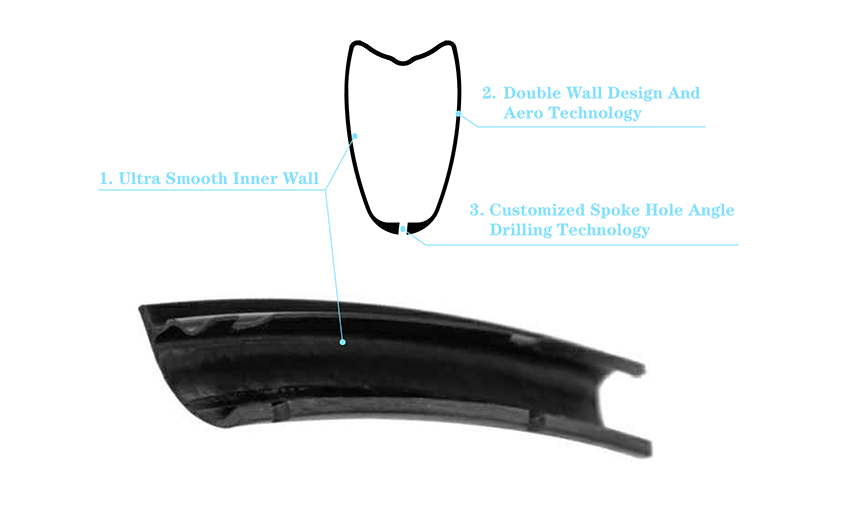

TECHNOLOGY


1. Ultra Smooth Inner Wall

Use specific, thinner, high-pressure air bladders to control the inner wall smoothness, The result is that we could see a very clean and smooth inner wall, which means the carbon fabrics are stretched smoothly and optimized. This could ensure the best strength of the fabrics.


2. Double Wall Design and Aero Technology

We use a double wall design to better control the rim strength and stiffness during layup. Rim profiles are specially designed with aero gains and drag reduction in mind.


3. Customized Spoke Hole Angle Drilling Technology

High-speed CNC machine tools drill carbon fiber rim spoke holes. Customized according to the geometric angle of the hub. Check all drill holes to make sure they are free of burrs.



MANUFACTURING PROCESS:


Our carbon fiber rims are formed in one piece, and each rim is made of long carbon fiber without wrinkles, to make the strength of the rim is the strongest. Every component, including the rim serial number, airbag, and carbon fiber prepreg, is collected, inspected, and weighed to confirm that everything has been taken into account.

Read more about carbon rim manufacturing process: link here


100% QUALITY INSPECTION:


In the production process of each carbon fiber rim product, Ornanbike strictly conducts 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim To ensure the best after-sales service.

Read more about carbon rim quality control: link here


WARRANTY POLICY:


Coverage: 2-year warranty from the date of purchase.


Conditions:

1. The Standard Warranty program is not transferable and only applies to the initial purchaser. Valid proof of purchase, pictures of the defect, video, and the product serial number is required for a warranty claim.


2. If any manufacturing defect occurs within 90 days of the date of being received, Ornan Bike is obligated to replace the carbon rim and pay for the shipping cost. If any manufacturing defect occurs after 91 days and up to 2 years, Ornan Bike is obligated to replace the carbon rim, and the customer is responsible for the shipping costs.


3. Any problem found on the warranty replacement product should be claimed within 7 days after the replacement is received, otherwise, the replacement is viewed as settled. The warranty period applies to the original purchase date and does not reset with a replacement rim.


Warranty coverage does not cover:

1. Normal wear and tear (spokes, nipples, rim tape, decals, stickers, etc).


2. Improper assembly or maintenance, including maintenance by an unauthorized technician.


3. Damage or failures caused by a crash, accidental damage, misuse of the product, non-compliance with manufacturer specifications of usage, or any other fractious reasons.


CLAIMS FOR DAMAGE OR LOSS OF SHIPMENT:


Please thoroughly inspect the package before signing.


1. If there is no damage, sign for the product. If there is damage, report this on the delivery slip or, alternatively, refuse the shipment and it will be returned to Ornan Bike. If a claim is made against the shipping company, they will provide a compensation number. Please inform Ornan Bike of this number for delivery tracking. Arrangements for reshipment will be made within 10~15 business days upon receiving the returned item.


2. If the items are damaged but accepted and not reported, there is no recourse against the delivery company and you are responsible for purchasing any replacement product.


3. If the package is in good condition, but the product is significantly damaged in transit, please keep the waybill, packaging and the shipment gets lost in transit, please get in touch with us (info@ornanbike.com) immediately and all Ornan Bike packages have been covered by insurance.



ORN725-30T WITH DT SWISS 180 CARBON WHEELSET VIDEO
