2021 Best Carbon 5 Spoke Wheels 20 Inch 451 Folding Ride Carbon Wheelset 23mm Wide 38mm Deep

Hand-built carbon fiber 5 spoke wheel 20 inch 451 folding bicycle 23mm wide 38mm deep rim brake or disc brake carbon wheel.

  • Item NO.:

    Orn5-20"-451
  • Payment:

    Paypal, Bank Transfer
  • Product Origin:

    China
  • Color:

    UD/3K/3K Twill/12K/12K Twill (Customized Decal Acceptable)
  • Product weight:

    1415g±30
  • Material:

    Full Carbon Toray T700
  • Product Detail

CARBON 5 SPOKE WHEELS 20 INCH 451



DESCRIPTION


2021 aerodynamic manufacturing cross-section design 20 inche 451 folding riding carbon 5 spoke wheels. Provide disc brake version and rim brake version. Whether you are riding a bicycle to work, ride it around the campground, pack it up in the RV, or take it out for a spirited recreation ride, it can get you to your destination quickly! it was designed to tackle all types of riding and styles.

There are no EPS bubbles in the manufacturing process of the rim, this means the rims are molded with an air bag that has the inner shape of the rim. So the rim is complete, stronger and stiffer. Full carbon Toray T700, Provide UD, 3K, 3K twill, 12K, 12K twill weave carbon fiber wheels.

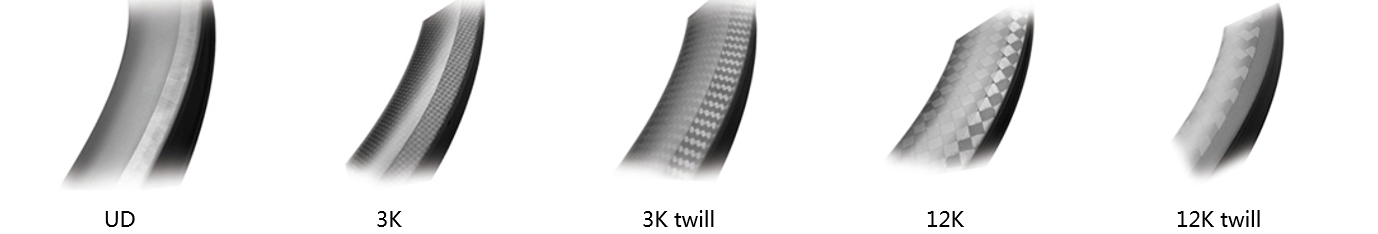

CARBON WEAVE PICTURE DISPLAY




WHEELSET SPECS



Model Orn5-20"-451 Orn5-20"-451-D

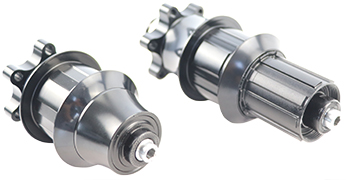

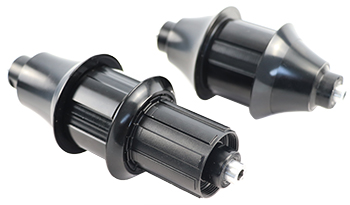

Hub Specifications
Sectional Drawing





Use Folding/Brompton/Road Folding/Brompton/Road
Hub
Fastace
Fastace
Fastace
Type Clincher Clincher
Bearing

Front: Japan EZO,

Rear: Germany FAG

Front: Japan EZO,

Rear: Germany FAG

Front: Japan EZO,

Rear: Germany FAG

Tubeless NO NO
Material
AL6061
AL6061
AL6061
Internal/External Width 17mm/23mm 17mm/23mm
Front Axle
12 x 100mm
9 x 100mm
9 x 100mm
Depth 38mm 38mm
Rear Axle
12 x 142mm
10 x 135mm
10 x 130mm
OD 460mm 460mm
Driver Body
Shimano 11S or Sram XDR
Shimano 11S or Sram XDR
Shimano 11S or Sram XDR
Spoke 5S 5S
Brake System
Disc E-Thru Axle
Disc 6-Bolt
Rim Brake
Brake Type Rim Brake Disc Brake



Brake Surface Basalt / 3K Twill NO




Weight Limit 130kg 130kg




Tire Recommended 16" x 1-1/4, 1-3/8 16" x 1-1/4, 1-3/8
